DPH1500-ECO
ATC Almeria 1500W Eco Panel Heater DPH1500-ECO
The ATC 1.5kW panel heater belongs to their Almeria Eco Digital Panel Heater range. This is a very easy heater to program and install. It can be operated in programmable mode or in manual mode by going into the settings menu. ATC's eco heaters are designed to be a high-tech and cost-effective solution for any location from residential, domestic, and commercial.
ATC's 1500W Eco Heater Specifications:
- Power: 1500W
- Voltage: 220-240V
- Large easy to read TFT Screen with text menus
- Easy to program
- Operating modes – Program – Manual – Landlord mode
- Thermostat: Electronically Adjustable between 5° and 30°
- Dimensions: Width 680mm, Depth 105mm, Height 440mm
- 3 Year Warranty
- Eco Design
- Landlord mode: Code locked mode to set a limited temperature range and time, useful for guaranteeing efficient use of the heating system.
- 2 User adjustable Temperature settings – Comfort – Economy
- Dedicated Boost facility with program advance mode
- Up to 4 Program times per 24 hours
- Complies with LOT 20 Eco–Design
- Complies with LOT 20 Eco–Design
- Directive 2009/125/EC
- CE and RoHs Approved
- Complies: EN 60335-1, EN 60335-2-30
Customers Also Purchased (3)
Product Information
The ATC Almeria DPH1500-ECO is a 1500W wall-mounted electric panel heater with a digital programmable controller. It suits medium-sized rooms such as bedrooms, offices and dining rooms where you want controllable direct-acting heat without plumbing, and its slim 105mm profile keeps it neat on the wall.

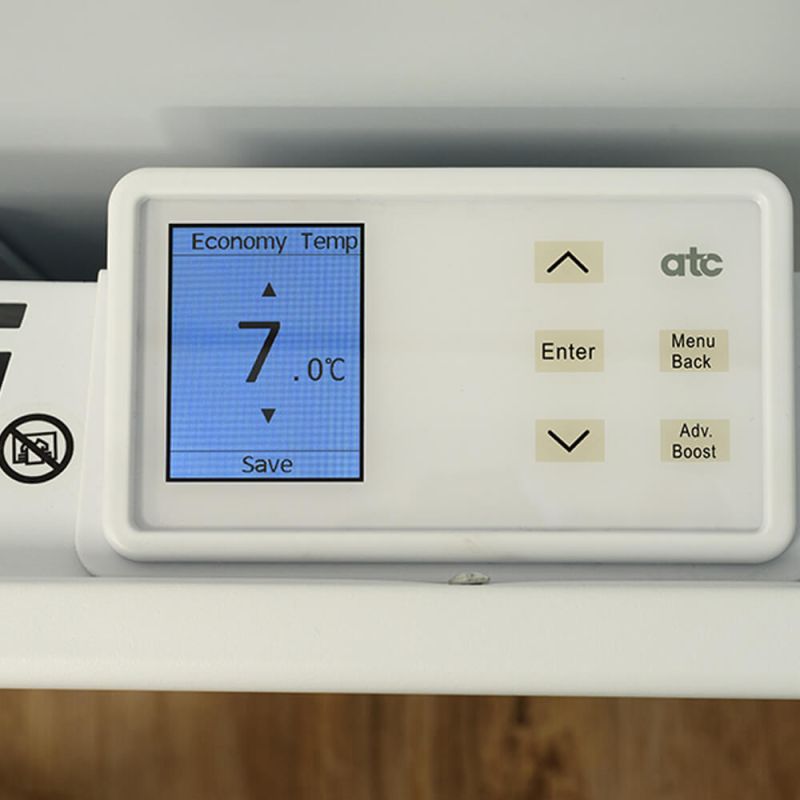

The controller has a large LCD display and a 24-hour, 7-day time clock with up to four heating periods per day. Users can set separate Comfort and Economy temperatures, and the thermostat is electronically adjustable between 5°C and 30°C. A boost function gives extra heat on demand, and a landlord mode lets property managers limit how the heater is run.
- Open window detection switches the elements off after a sudden 4°C temperature drop
- Lockable keypad to prevent tampering
- Lot 20 Ecodesign compliant
- IP24 rated, white finish, wall bracket supplied
The heater must be wall mounted on the supplied bracket, or used with the optional ATC castor kit. Connection must be made to an earthed supply with RCD protection, and installation must comply with current wiring regulations. It is covered by the manufacturer's warranty.
Specifications
| Model | DPH1500-ECO |
|---|---|
| Wattage | 1500W |
| Supply | 220-240V, 50Hz |
| Dimensions (H x W x D) | 440 x 680 x 105 mm (110 mm with bracket) |
| Weight | 5.5 kg |
| IP rating | IP24 |
| Thermostat range | 5°C to 30°C |
| Timer | 24-hour, 7-day, up to 4 periods per day |
| Ecodesign | Lot 20 compliant |
| Colour | White |
Product Details
| Brand | atc |
|---|---|
| Weight (kg) | 0.000000 |
| Wattage | 1500W |
| Product Range | Panel Heater | Datasheet | Download |
Delivery Information
| Location | Shipping Method | Shipping Charges | Timescales |
|---|---|---|---|
| Mainland UK | Standard Delivery | £3.95 | 3-5 working days |
| Northern Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
| Republic of Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
Free delivery on orders over £30 (ex VAT).
* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.
Cancellations and Returns
Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions
- The Goods are in all original packaging
- The materials contain all original documentation (instructions, manuals, warranties or any other literature)
- Product is deemed by our returns department to be in a re-sellable condition
All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.
Faulty Products
- Products that are faulty must be returned within the manufacturer’s warranty period.
- The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
- Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.
Frequently Asked Questions
The ATC Almeria 1500W Eco Panel Heater can be installed in a wide range of environments.
ATC's eco heater can be installed in domestic and commercial environments. ATC's eco panel heater is common within holiday resorts, b&bs, and apartments.
The full range of eco panel heater is also be installed in households to create a warm and cozy environment.
To conclude, the overall ATC panel eco heater range is a universal heating system which can be installed in many different applications to create the perfect heating system.
The ATC Almeria 1500W Eco Panel Heater is 680mm x 105mm x 440mm.
If you aren't sure what size of ATC eco heater to purchase, contact our friendly sales advisors on the live chat or via email with the dimensions of your room including weight and height. Our experts will recommend you with an ATC eco heater to suit the requirements of your room.
Yes, the ATC eco panel heater is designed to be extremely energy efficient. The 1.5kw eco heater meets the eco-design Lot 20 compliant. The ATC eco panel heaters has many eco friendly features including the open window technology and the comfort mode.
The ATC eco heater has an open window feature which increases the efficiency of the digital panel heater. Any change in room temperature is automatically detected by Open Window Detection. The ATC eco heater will automatically adjust the temperature. The Almeria Eco Digital Panel heater is a popular choice for many users because of its environmental values, cost savings, and the slim appearance.
Make the change to eco panel hater today to become more energy efficent.
Yes, ATC provides a 3-year warranty on their full Eco Panel heater range.
Please note any signs of tampering or installed incorrectly. It is extremely important to read ATC's spec sheets and installation instructions to ensure the eco heater is installed correctly to prevent damage.
In the case of a faulty ATC eco heater, please contact our sales team with an image and description and we will come up with the best solution for you. Please note, that any damaged eco heaters must be reported within 24 hours from the delivery.
Yes, the Almeria 1500W Eco Panel Heater is fitted with 1.5m mains cable. It is recommended to install the eco heater to a spur. Please read ATC installation instructions to ensure safe installation.
Yes, ATC has 5 different models in their Eco Heater range. The eco panel heaters are available from 500W - 2000W.
If you are unsure what eco panel to purchase, please contact our sales team for an recommendation.
Yes, you can request a heating design for the Almeria 1500W Eco Panel Heater. Contact our sales team today and we will organize a heating and sizing guide for you.
Provide our sales team with the room dimensions of the area and the insulation levels. (If you aren't sure, provide as much information as possible) and we will come up with the most energy-efficient eco heater for your room or business.
ATC's eco heater is manufactured with a white finish. The white finish on the eco heater is perfect for a wide range of environments providing a natural and sleek finish to the room.
No, the ATC eco panel heater must not be installed on the ceiling. The reason is that to guarantee optimal ventilation of the eco heater, there must be enough room around the top of the eco panel heater.
The ATC eco heater has a heating output via a weekly timer and an electronic room temperature control.
The control options with ATC eco heater are room temperature control with open window detection.
The ATC eco heater is approved by CE, Intertek GS and RoHS.
The frequency of the ATC eco panel heater is 50-60Hz.
Because there are no user-serviceable components on the Almeria eco heater, they require extremely minimal maintenance. Make sure there isn't too much dust or grime on the eco heater element, since this might lead to overheating and premature element failure.
Wipe dirt from the outside of the eco heater using a moist cloth. Do not use any harsh cleaning products on the eco heater.
Each time a key is pressed, the Almeria eco heater will beep. To turn off this sound, simultaneously press Enter and Adv. Boost. The sound will be turned on or off on the eco heater each time the buttons are pressed together.
The temperature of controlled on the eco heater by two different temperature settings which can be adjusted manually.
The heater's "on" and "off" settings are controlled by these set points.
When the eco heater is turned on, the Comfort setting is utilized to maintain the desired room temperature.
When the eco heater is turned off, the Economy setting is used.
When the eco heater is turned on, it shows which temperature setting is active. In program run mode, a C or an E appears beside the day.

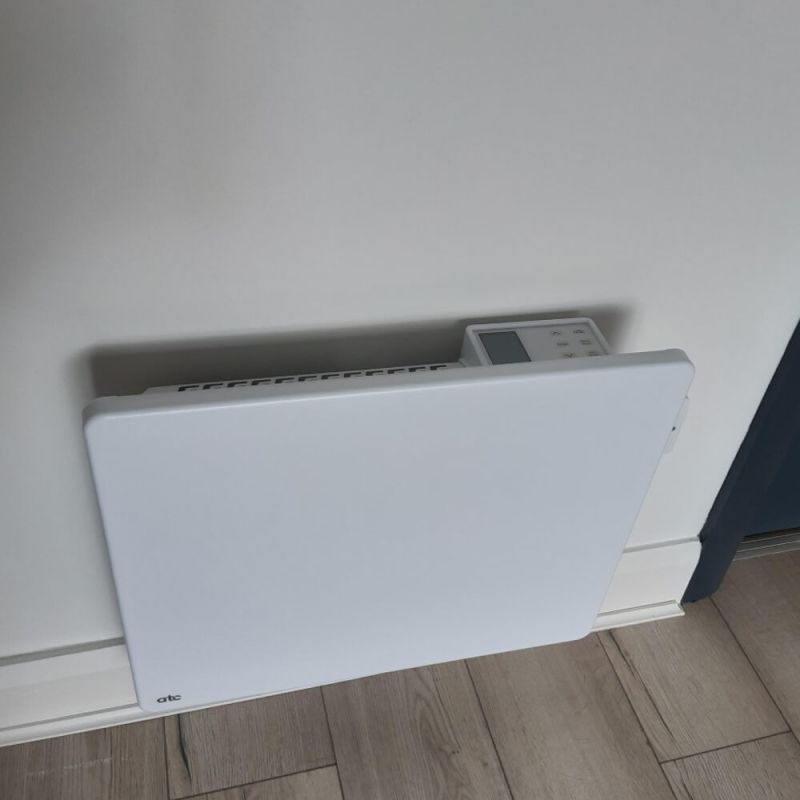

See below the instructions on how to wall mount the eco heater:
- Disconnect the wall bracket from the rear of the eco heater after removing it from the box.
- Mark the wall for the eco heater of your choice.
- Drill holes in the wall and install the plastic wall anchors.
- Install the wall bracket using the included screws.
- Connect the eco heater to the wall bracket by inserting the bracket's four hooks into the holes on the back of the eco heater.
It is rated IP24, which means it is protected against splashing water from any direction. ATC's instructions say it must be positioned so that nobody in the bath or shower can touch the controls, and it must not sit directly below or in front of a socket outlet. Where it can go in relation to bathroom zones depends on current wiring regulations, so check those and the manufacturer's instructions before fitting.
It is supplied with its own cable for connection to a 220-240V earthed supply. ATC requires RCD protection with a rated residual operating current not exceeding 30mA upstream of the heater, and advises against extension leads. For the correct method of connection in your installation, check the manufacturer's instructions and make sure the work complies with current wiring regulations.
The manual sets minimum distances around the heater, including at least 15cm from the floor to the bottom of the unit and a clear space in front so warm air can circulate. It should not be recessed or covered at any time. Please check the manufacturer's instructions for the full list of clearances to ceilings, side walls and furniture before marking out the bracket.
If the heater senses a temperature drop of about 4°C over a short period, as happens when a window is opened, it switches the heating elements off and shows an open window symbol. Heating resumes when the user presses Enter, or at the start of the next programmed period. The feature can be turned on or off in the settings menu.
