DPH2000-ECO
ATC Almeria 2000W Eco Digital Panel Heater DPH2000-ECO
The ATC 2000W Almeria Eco Digital Panel Heater is a very easy heater to program and to install. The 2000W heater can be operated in programmable mode or in manual mode by going into the settings menu. The full Almeria Digital Panel Heater range is extremely cost-effective and popular within commercial, domestic, and residential environments.
Almeria Eco Digital Panel Heater Product Specifications:
- Large easy to read TFT Screen with text menus
- Easy to program
- 3 Operating modes – Program – Manual – Landlord mode
- Landlord mode: Code locked mode to set a limited temperature range and time, useful for guaranteeing efficient use of the heating system.
- 2 User adjustable Temperature settings – Comfort – Economy
- Dedicated Boost facility with program advanced mode
- Up to 4 Program times per 24 hours
- Open Window Technology – improves Energy Efficiency
Customers Also Purchased (3)
Product Information

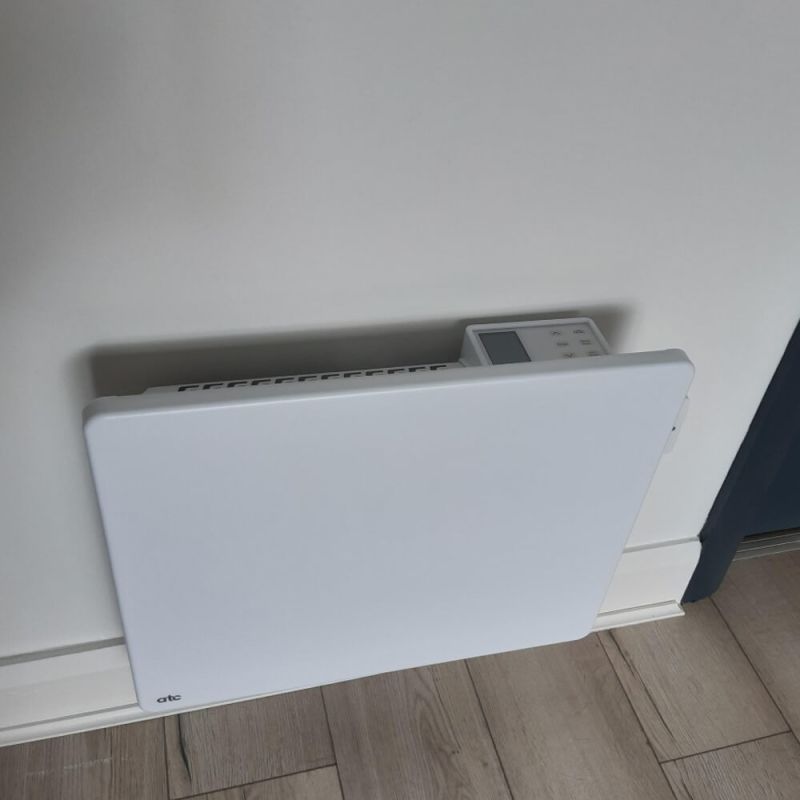

The ATC Almeria DPH2000-ECO is a 2000W wall-mounted electric panel heater with a digital programmable controller. It suits larger rooms such as living rooms, offices and open-plan areas where you want controllable direct-acting heat without plumbing, and its slim 105mm profile keeps it neat on the wall.
The controller has a large LCD display and a 24-hour, 7-day time clock with up to four heating periods per day. Users can set separate Comfort and Economy temperatures, and the thermostat is electronically adjustable between 5°C and 30°C. A boost function gives extra heat on demand, and a landlord mode lets property managers limit how the heater is run.
- Open window detection switches the elements off after a sudden 4°C temperature drop
- Lockable keypad to prevent tampering
- Lot 20 Ecodesign compliant
- IP24 rated, white finish, wall bracket supplied
The heater must be wall mounted on the supplied bracket, or used with the optional ATC castor kit. Connection must be made to an earthed supply with RCD protection, and installation must comply with current wiring regulations. It is covered by the manufacturer's warranty.
Specifications
| Model | DPH2000-ECO |
|---|---|
| Wattage | 2000W |
| Supply | 220-240V, 50Hz |
| Dimensions (H x W x D) | 440 x 840 x 105 mm (110 mm with bracket) |
| Weight | 6.5 kg |
| IP rating | IP24 |
| Thermostat range | 5°C to 30°C |
| Timer | 24-hour, 7-day, up to 4 periods per day |
| Ecodesign | Lot 20 compliant |
| Colour | White |
Product Details
| Brand | atc |
|---|---|
| Weight (kg) | 0.000000 |
| Wattage | 2000W |
| Product Range | Panel Heater | Datasheet | Download |
Delivery Information
| Location | Shipping Method | Shipping Charges | Timescales |
|---|---|---|---|
| Mainland UK | Standard Delivery | £3.95 | 3-5 working days |
| Northern Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
| Republic of Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
Free delivery on orders over £30 (ex VAT).
* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.
Cancellations and Returns
Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions
- The Goods are in all original packaging
- The materials contain all original documentation (instructions, manuals, warranties or any other literature)
- Product is deemed by our returns department to be in a re-sellable condition
All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.
Faulty Products
- Products that are faulty must be returned within the manufacturer’s warranty period.
- The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
- Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.
Frequently Asked Questions
The 2kw panel heater from ATC can be installed in a variety of different settings.
It can be installed in domestic environments. The Almeria Eco Digital Panel heater is a popular choice within households to perfect the perfect amount of heat.
The 2kw panel heater is also commonly installed in residential and commercial environments. The design of the 2000W panel heater is slim which is perfect for b&bs, student accommodation, and apartments where space is limited. The Almeria eco digital panel heater is extremely energy efficient which will save the end-user money.
The finish of the 2kw panel heater from ATC is white. The Almeria Eco Digital Panel heater's white finish provides a clean sleek appearance to the room. The finish of the 2000W panel heater means the heater can blend into the wall and provide a modern and tidy finish to the room.
The ATC DPH200 panel heater provides a wattage power of 2000W / 2kw.
The Almeria eco digital panel heater requires very little maintenance because there are no user-serviceable components. Make sure the 2kw panel heater element isn't covered in dust or dirt, since this might cause overheating and premature element failure. Using a damp cloth, wipe the dirt from the outside of the 2kw panel heater.
It is important to not use any harsh cleaning products on the 2kw panel heater.
ATC provides a 3-year warranty on the Almeria Digital Panel Heater range. It is extremely important to read the warranty document when experiencing a fault with the 2kw panel heater.
Contact our sales team, if you are experiencing technical issues with the ATC 2kw panel heater and we will try our best to come up with the best solution. Any damage to the ATC 2kw panel heater must be reported within 24 hours of delivery.
The installation of the Almeria Eco Digital Panel Heater is extremely easy.
-
After taking the 2kw panel heater from the box, disconnect the wall bracket from the 2kw panel heater's back.
Make a mark on the wall where you want your 2kw panel heater to go.
Install the plastic wall anchors by drilling holes in the wall.
Use the provided screws to mount the wall bracket.
Connect the 2kw panel heater to the wall bracket by inserting the bracket's four hooks into the holes on the back of the 2kw panel heater.
No, the Almeria digital panel heater must not be installed on the ceiling. The 2kw panel heater is only designed to be mounted to the wall.
Yes, the Almeria Digital Panel heater is designed to be extremely energy efficient. The 2kw panel heater has energy-efficient features such as the open window technology and meets the eco-design Lot 20 compliant.
Yes, there is a heating design service available for the Almeria Digital Panel Heater. Contact our sales team and we will get a heating design completed for you.
The 2kw panel heater is 840 x 105 x 440mm.
ATC's 2kw panel heater are approved by CE, Intertek GS and RoHS.
To silence ATC'S 2kw panel heat, press the Enter and Adv. Boost button at the same time.
It is rated IP24, which means it is protected against splashing water from any direction. ATC's instructions say it must be positioned so that nobody in the bath or shower can touch the controls, and it must not sit directly below or in front of a socket outlet. Where it can go in relation to bathroom zones depends on current wiring regulations, so check those and the manufacturer's instructions before fitting.
It is supplied with its own cable for connection to a 220-240V earthed supply. ATC requires RCD protection with a rated residual operating current not exceeding 30mA upstream of the heater, and advises against extension leads. For the correct method of connection in your installation, check the manufacturer's instructions and make sure the work complies with current wiring regulations.
The manual sets minimum distances around the heater, including at least 15cm from the floor to the bottom of the unit and a clear space in front so warm air can circulate. It should not be recessed or covered at any time. Please check the manufacturer's instructions for the full list of clearances to ceilings, side walls and furniture before marking out the bracket.
If the heater senses a temperature drop of about 4°C over a short period, as happens when a window is opened, it switches the heating elements off and shows an open window symbol. Heating resumes when the user presses Enter, or at the start of the next programmed period. The feature can be turned on or off in the settings menu.
