LED drivers and lighting controls are the devices that power LED modules and let you dim, switch and schedule them, from simple phase-cut dimmable drivers to networked DALI-2 and Bluetooth systems. This Kosnic range includes 20W to 40W DALI-2 drivers with 1-10V and push dimming, phase-cut dimmable drivers, Casambi Bluetooth drivers, RF drivers and triac dimmers, and SceneCOM DALI-2 controllers.

Wall switches, remotes, a DALI-2 power supply and push-wire connectors complete the line-up. Trade account holders see trade prices, and in-stock orders placed before 5pm are delivered across Northern Ireland and ROI the following working day.

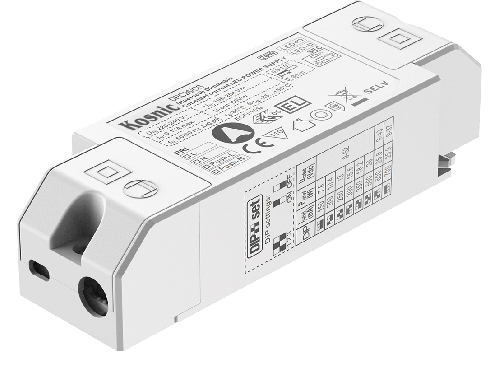

DRC26/CSB Ships in 7 - 10 days

Kosnic Casambi Dimmable driver 26W Bluetooth & Push Button

£129.30 inc. VAT

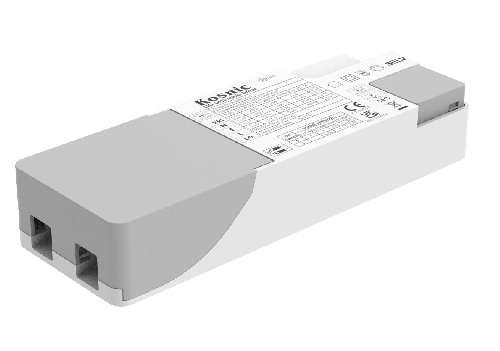

DRC40/D In-Stock

Kosnic 40W Phase-cut Dimmable Driver

£14.88 inc. VAT

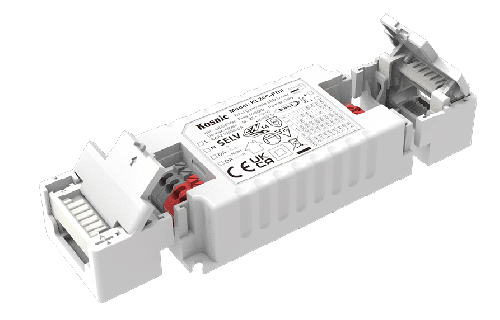

DRC20/DA Ships in 7 - 10 days

Kosnic Dimmable Driver 20W DALI2 Primary Push Dim Driver

£24.47 inc. VAT

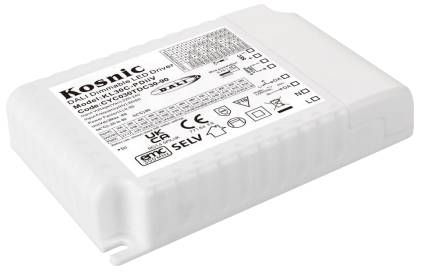

DRC30/DA In-Stock

Kosnic Dimmable Driver 30W DALI, 1-10V, Primary PUSH Driver

£37.73 inc. VAT

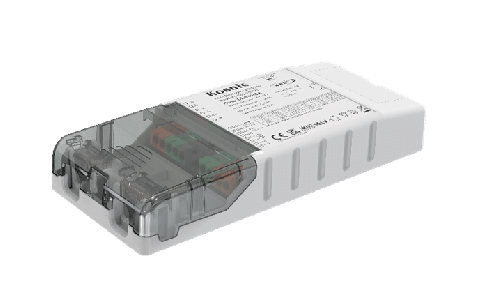

DRC40/DA In-Stock

Kosnic Dimmable Driver: 40W DALI2 1-10V Primary Push Dim Driver

£32.10 inc. VAT

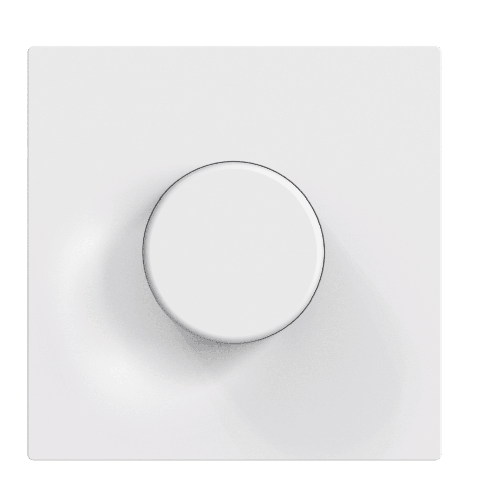

RSW/DA Ships in 7 - 10 days

Kosnic Rotary Switch for Integration in DALI-2 Compliant Systems

£56.72 inc. VAT

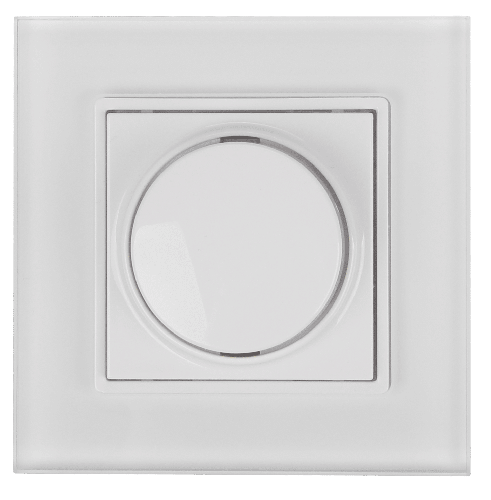

CSWRF01 Ships in 7 - 10 days

Kosnic Single Channel Wall Mount Rotary Switch Battery Powered

£71.47 inc. VAT

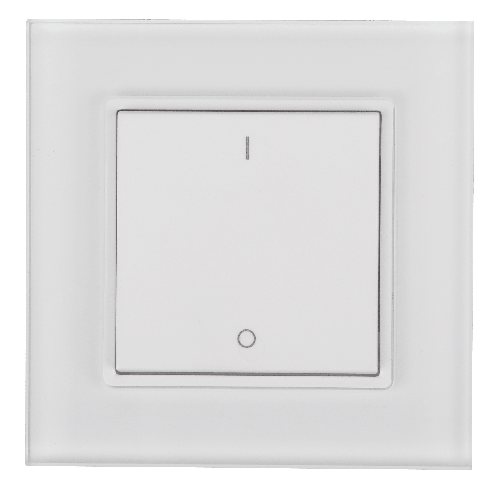

CSWRF02 Ships in 7 - 10 days

Kosnic Single Channel Wall Mount Push Switch Battery Powered

£71.47 inc. VAT

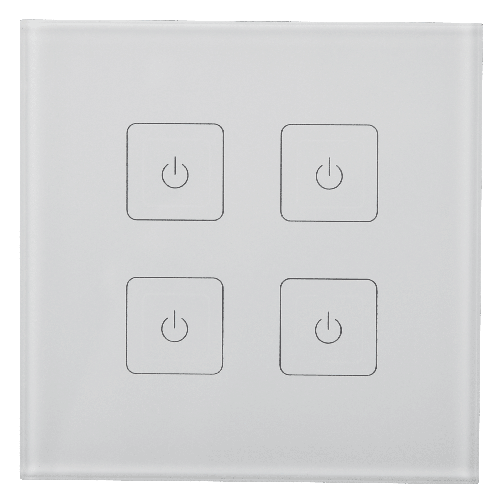

CSWRF03 Ships in 7 - 10 days

Kosnic 4 Channel Wall Mount Touch Switch Mains Powered

£77.59 inc. VAT

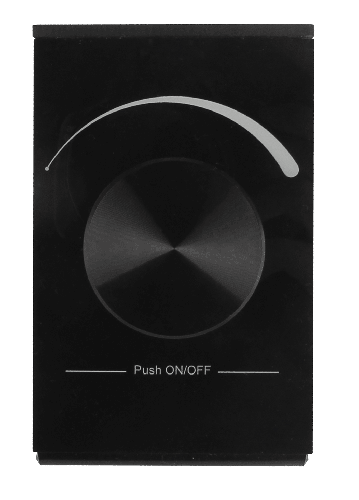

CSWRF04 Ships in 7 - 10 days

Kosnic Single Channel Desk Top Rotary Switch Battery Powered

£50.59 inc. VAT

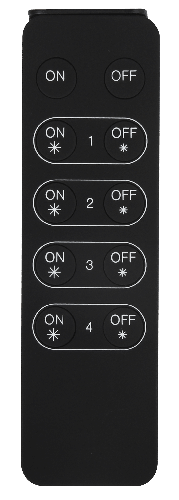

CSWRF05 Ships in 7 - 10 days

Kosnic 4 Channel Handheld Remote Control Battery Powered

£27.35 inc. VAT

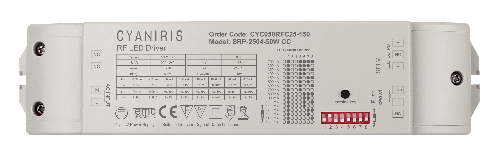

CYC050RFC25-150 Ships in 7 - 10 days

Kosnic RF Controlled LED driver 50W

£73.61 inc. VAT

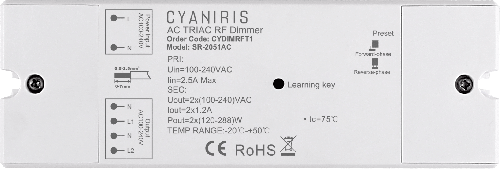

CYDIMRFT1 Ships in 7 - 10 days

Kosnic RF Controlled Triac Dimmer

£65.21 inc. VAT

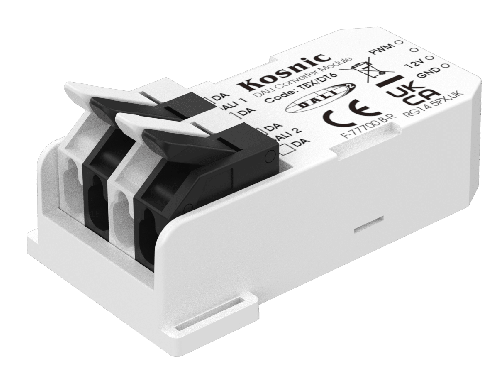

TBX/DT6 Ships in 7 - 10 days

Kosnic Tarr Bridge Box DALI-2 DT6 Conversion Box to PWM

£32.42 inc. VAT

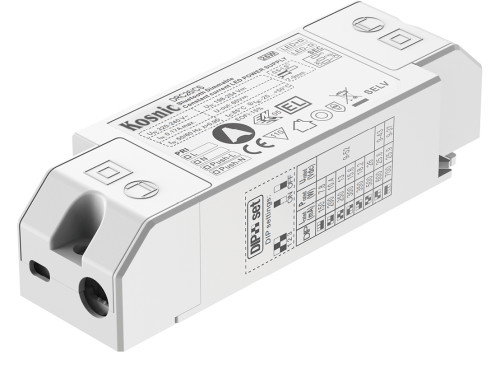

DRC42/CSB Ships in 7 - 10 days

Kosnic Dimmable Driver Casambi dimmable driver 42W Bluetooth

£137.86 inc. VAT

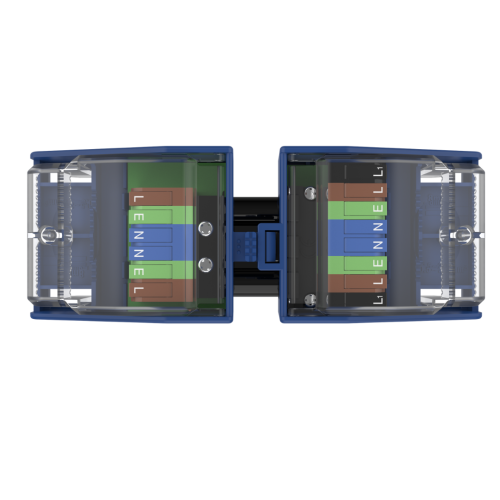

CON4F3M Ships in 7 - 10 days

Kosnic Push-wire connector 4 pin to 3pin

£3.83 inc. VAT

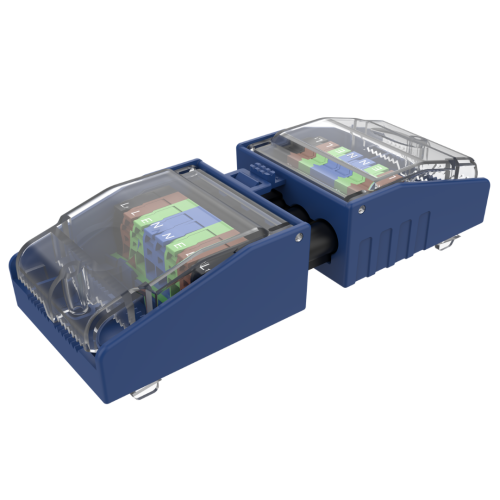

CON4F4M Ships in 7 - 10 days

Kosnic Push-wire connector 4 pin to 4 pin

£4.24 inc. VAT

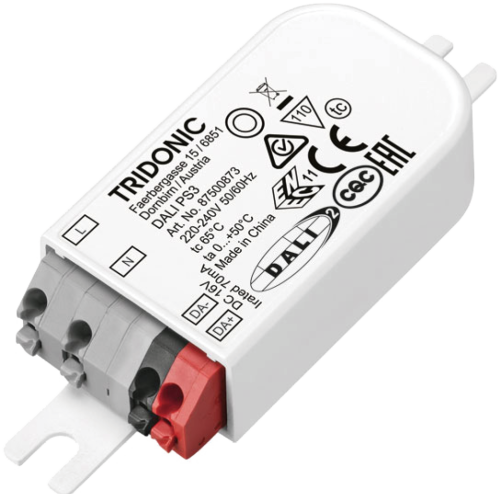

DALI-PS Ships in 7 - 10 days

Kosnic DALI-2 Power Supply

£35.94 inc. VAT

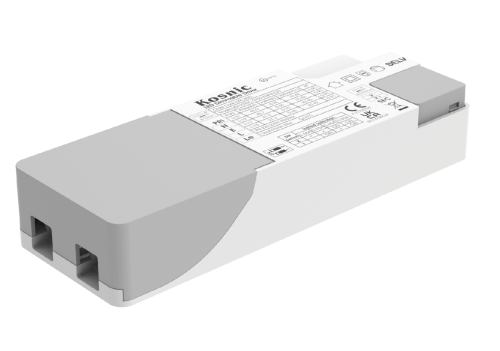

DRC22/D Ships in 7 - 10 days

Kosnic Dimmable Driver Phase-cut 22W 300-450mA

£14.57 inc. VAT

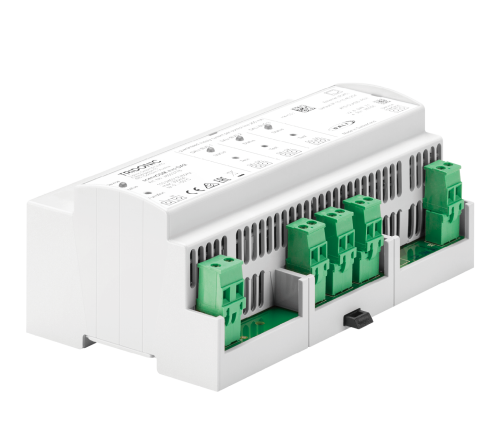

SCOM-EVODA2 Ships in 7 - 10 days

Kosnic SceneCOM evo DA2 single master DALI-2 app controller

£2,930.78 inc. VAT

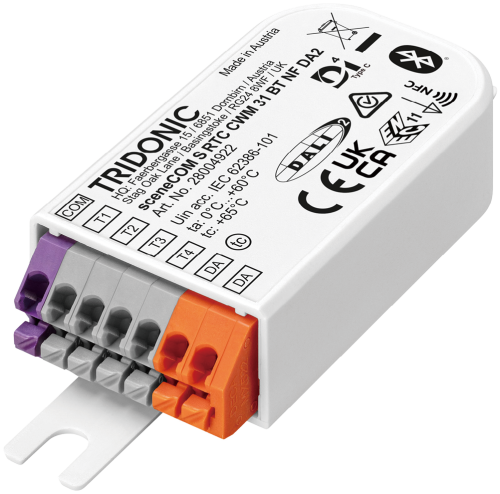

SCOM-RTCDA2 Ships in 7 - 10 days

Kosnic SceneCOM S DALI-2 application Controller (single-channel)

£264.25 inc. VAT

How to choose an LED driver or control system

Many LED problems, from flicker to early failure, trace back to a driver or dimmer that does not suit the load. Matching the electrical output and the control method gets the job right first time.

Match the driver to the LEDs

Output type – constant current drivers (rated in mA) suit downlights, panels and LED modules; constant voltage drivers (such as 24V) suit LED strip.
Current or voltage – the driver output must sit within the LED module's specified range.
Wattage – the driver should be rated for the total load, with headroom where recommended.
Size and IP rating – check the space available and whether the driver is suitable for the location.

Choose the control method

Phase-cut dimmable drivers work with compatible wall dimmers and suit domestic and small commercial jobs. 1-10V drivers dim from a separate low-voltage control signal and are common with sensors. DALI and DALI-2 drivers are individually addressable on a two-wire bus, allowing grouping, scenes and feedback in commercial buildings, and need a DALI bus power supply and controller. Push dimming lets a standard retractive switch dim and switch fittings. Casambi Bluetooth drivers allow app and wireless switch control without extra control wiring, and RF systems pair drivers with battery-powered wall switches and handheld remotes.

Installation tips

Keep control and mains wiring separated where the manufacturer requires it, observe polarity on DC outputs and keep drivers ventilated and accessible. Check the maximum cable length between driver and LED module. For strip installations see LED strip lights, and for presence and daylight control see motion detectors. Follow the manufacturer's instructions and current wiring regulations.

Meteor Electrical is a family-run wholesaler with 40+ years in the trade and 5,000+ products in stock. Credit accounts are available subject to approval, deliveries to Great Britain take 3–5 working days, and our team is on 028 8675 1515 (048 8675 1515 from ROI) for help choosing a driver.

FAQ's Ask Your Own Question

What is the difference between a constant current and constant voltage LED driver?: A constant current driver supplies a fixed current, such as 350mA or 700mA, and lets the voltage vary to suit the LEDs; it is used for downlights, panels and LED modules. A constant voltage driver supplies a fixed voltage, such as 12V or 24V, and is used for LED strip and other loads designed for it. Using the wrong type can damage the LEDs.
What is DALI-2 lighting control?: DALI-2 is the updated version of the Digital Addressable Lighting Interface standard. Each driver or device on the two-wire bus has its own address, so fittings can be grouped, dimmed, scheduled and monitored individually. DALI-2 adds certified interoperability for control devices such as sensors and switches. A DALI system needs a bus power supply and a controller, such as the Kosnic SceneCOM range.
Do I need a leading edge or trailing edge dimmer for LEDs?: Most LED drivers and dimmable LED lamps are designed for trailing edge dimmers, which give smoother, quieter dimming at low loads. Some products also work with leading edge dimmers, but compatibility varies. Check the driver or lamp datasheet for the recommended dimmer type and the manufacturer's compatibility list, and make sure the total LED load is within the dimmer's minimum and maximum rating.
What is a Casambi LED driver?: A Casambi driver includes Bluetooth control, so fittings can be dimmed, grouped and set to scenes from a smartphone app or compatible wireless switches, without running extra control cables. It is a practical option for refurbishments, restaurants and retail spaces where rewiring is difficult. Kosnic offers Casambi dimmable drivers, some also supporting push-button control from a standard retractive switch.
What is push dimming?: Push dimming lets you dim and switch LED lighting using a standard retractive, or momentary, switch connected to the driver's push terminal. A short press switches the light on or off, and a long press dims it up or down. It is simple to install and useful in meeting rooms and classrooms. Check the driver's maximum number of fittings and cable length for push control.
Do I need a separate power supply for a DALI system?: Yes, a DALI bus needs its own power supply to provide the low-voltage signal that drivers and control devices use to communicate. Some controllers have a built-in bus supply, while others need a standalone unit such as the Kosnic DALI-2 power supply. Check the total number of devices on the bus and the power supply's rating against the system design before installation.
