W10-U

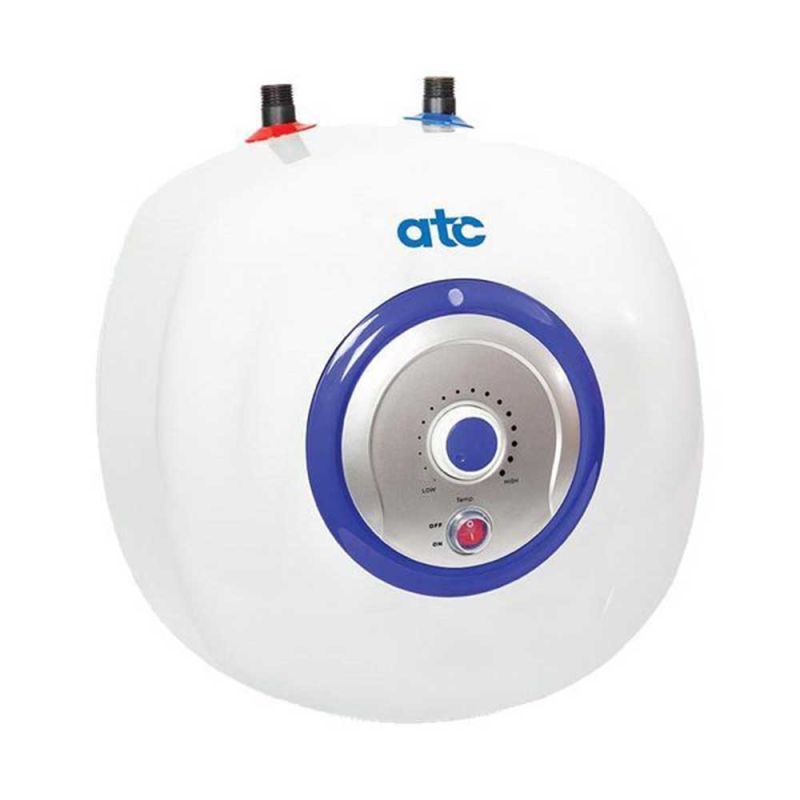

ATC 10 Litre Under Sink Water Heater
This a 10 Litre Under Sink Water Heater from ATC. Under sink water heaters are more cost-effective than other water heating options. 10 litre under sink water heaters provides efficient water heating for commercial purposes. These 10 litre under sink water heaters are compact, and you can easily mount the 10 litre under sink water heater in any location.
Key Features:
- Capacity: 10L/2.2 gallon
- Power wattage: 2000W
- Voltage capacity: 220-240V
- Frequency: 50 to 60 Hz
- Height: 300mm
- Width: 340mm
- Depth: 330m
- Maximum pressure capacity: 8 bar
- Connection: ½” connections
- External component
- Approval ratings: CE and RoHs
- Class B
Customers Also Purchased (2)
Product Information
The ATC Pacific W10-U is a 10 litre unvented water heater designed to sit under a sink, giving a local supply of hot water where running pipework from a central system is impractical. It is a good fit for small kitchens, staff rooms, offices, workshops and washrooms, and the manufacturer recommends it for serving two to three basins.
The 2000W element heats a full tank from 10°C to 65°C in about 19 minutes. The heavy-gauge tank is glass-lined and protected by a magnesium anode, and an external thermostat lets the user adjust the temperature, including an economy setting. The heater has 1/2 inch hot and cold connections with dielectric fittings and is rated for a maximum working pressure of 8 bar.
- 10 litre capacity, 2000W element
- Glass-lined tank with magnesium anode
- External adjustable thermostat
- IPX4 rated, wall bracket supplied
A pressure relief valve is supplied with the heater. Depending on mains pressure, an expansion vessel or pressure kit may also be needed. Installation must follow the manufacturer's instructions and comply with current wiring and plumbing regulations. It is covered by the manufacturer's warranty.
Specifications
| Model | ATC Pacific W10-U |
|---|---|
| Capacity | 10 litres |
| Power | 2000W |
| Supply | 220-240V, 50/60Hz |
| Dimensions (H x W x D) | 300 x 340 x 330 mm |
| IP rating | IPX4 |
| Max working pressure | 8 bar |
| Connections | 1/2 inch hot outlet and cold inlet |
| Heat-up time | Approx. 19 minutes (10°C to 65°C) |
| Tank | Glass-lined, magnesium anode |
| Colour | White |
Product Details
| Brand | atc |
|---|---|
| Product Range | Under Sink Heater | Datasheet | Download |
Delivery Information
| Location | Shipping Method | Shipping Charges | Timescales |
|---|---|---|---|
| Mainland UK | Standard Delivery | £3.95 | 3-5 working days |
| Northern Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
| Republic of Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
Free delivery on orders over £30 (ex VAT).
* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.
Cancellations and Returns
Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions
- The Goods are in all original packaging
- The materials contain all original documentation (instructions, manuals, warranties or any other literature)
- Product is deemed by our returns department to be in a re-sellable condition
All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.
Faulty Products
- Products that are faulty must be returned within the manufacturer’s warranty period.
- The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
- Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.
Frequently Asked Questions
The 10 Litre Under Sink Water Heater provides a power wattage of 2000W.
The ATC 10 Litre Under Sink Water Heater has a maximum pressure bar of 8 bars.
Yes, the ATC 10 Litre Under Sink Heater is designed to be environmentally friendly and energy efficient. The heater has been manufactured with polyurethane foam insulation which reduces heat loss and energy consumption. The external thermostat control allows the end consumer to control their under sink heater using the economy setting to increase the energy efficiency.
Please click the attached data sheet for a detailed step by step on how to install the 5 Litre Under Sink Heater: https://www.meteorelectrical.com/pub/media/catalog/product/file/ATC-Pacific-Unvented-Water-Heaters_1_.pdf
It is important to note, if you aren’t a qualified electrician, to contact your local electrician to ensure safe installation.
ATC recommends the W10-U for two to three basins. It is best suited to hand washing and light kitchen use rather than filling baths or sinks repeatedly. A full tank heats from 10°C to 65°C in about 19 minutes, so where demand is heavy or continuous a larger heater may be more suitable.
It is an unvented heater that runs from mains pressure, with a maximum working pressure of 8 bar. A pressure relief valve is supplied and must be fitted in the cold supply, not on the heater itself. Depending on inlet pressure, an expansion vessel or pressure kit may be needed. Check the manufacturer's instructions for the exact valve arrangement.
ATC's instructions say that with inlet pressure up to 4.1 bar you can allow for expansion in at least 2.8m of cold pipework before the non-return valve, or fit their Kit-A1 expansion vessel. Above 4.1 bar, Kit-B1 is required. If a pressure reducing valve is fitted, an expansion vessel must be used. Check the manufacturer's instructions for your installation.
The heater is rated 2000W at 220-240V. The method of connection and protection should be confirmed from the manufacturer's instructions, and the circuit must be designed and installed by a competent person in line with current wiring regulations. It is rated IPX4, but it should still be positioned where it is protected from leaks under the sink.
