MAL-M/DV
Mallar Recessed Microwave Sensor 1-10V Dim Output Kosnic

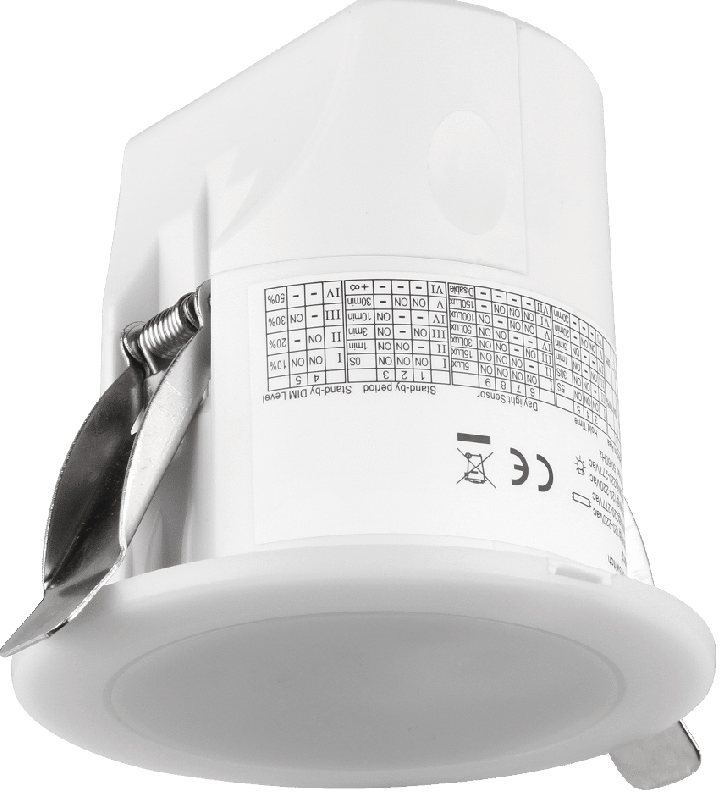

This is the Kosnic Mallar Recessed Microwave Sensor 1-10V Dim Output.
Key Features:
- Suitable for basic on-off control or control of 1-10V dimmable luminaires
- Optional daylight harvesting
- Discrete flush mounting
- Optional stand-by dimming
- Minor motion sensitivity suitable for office and classroom applications
- Parameters settable by DIP switches or remote control
- Up to 800W inductive load capacity
- Push-fit terminals
- Pre-programmed scene selections
Product Information
The Kosnic Mallar Recessed Microwave Sensor (1-10V Dim Output), also designated as the M11, is a highly versatile, low-profile occupancy detector engineered for smart, multi-level lighting control. Designed to fit flush into ceiling layouts, this advanced microwave sensor provides both crisp on/off switching and smooth 1-10V dimming functionality, giving it the capacity to switch up to 1 kilowatt of resistive load.
To accommodate specialized energy management policies, the sensor offers a comprehensive suite of highly adjustable parameters. Installers can easily fine-tune the detection area, customize the hold time for full illumination, and configure the integrated daylight sensor to prevent operation during peak daylight hours. Furthermore, it features adjustable stand-by periods and dedicated standby dim level settings, allowing the fixture to drop to a low-energy ambient glow rather than turning completely off. Complete with a convenient test light feature for quick installation verification, the Mallar sensor provides an adaptive, comprehensive control path for commercial offices, modern classrooms, and high-footfall public facilities.
Product Details
| Brand | Kosnic |
|---|---|
| Ambient Temperature (°C) | -25°C to 55°C |
| Class Protection | Class II |
| IP Rating | IP20 | Datasheet | Download |
