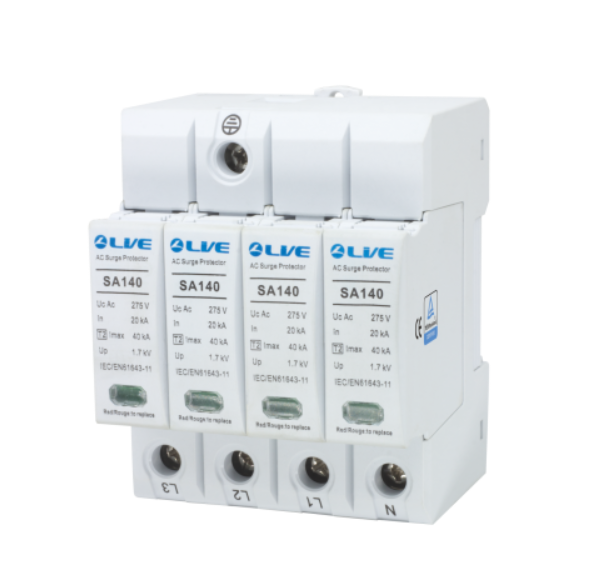

SA440
4P 20KA/40KA Type 2 Surge Protection Device Live Electrical
- 4 pole Type 2 surge protection device (SPD)
- Nominal discharge current: 20kA
- Maximum discharge current: 40kA
- Protection level: 1.7kV
- Visual status indicator (Green: OK / Red: Replace)
- DIN rail mounted (35mm to EN 60715)
- Suitable for TN systems (230V/380V, 50/60Hz)
- Compact 4 module width (72mm)
- IP20 rated
- Operating temperature: -40°C to +85°C
Product Information
The SA440 4 Pole Type 2 Surge Protection Device (SPD) is designed to protect electrical installations from transient overvoltages caused by lightning strikes and switching events.
With a nominal discharge current of 20kA and a maximum discharge capacity of 40kA, this device provides reliable protection for commercial and industrial electrical systems. It delivers a protection level of 1.7kV, helping to safeguard sensitive equipment and maintain system integrity.
The unit features a clear visual status indicator, allowing for quick identification of operational condition (green = operational, red = replacement required), ensuring ongoing system safety and easy maintenance.
Designed for DIN rail mounting (35mm to EN 60715), the SA440 is compact at 4 modules (72mm width), making it easy to integrate into distribution boards.
Suitable for TN systems operating at 230V/380V (50/60Hz), it supports terminal capacities from 6mm² to 35mm², with a recommended tightening torque of 2.5Nm.
Built to IEC/EN 61643-11 standards, the SA440 operates reliably in demanding conditions, with an operating temperature range from -40°C to +85°C and a short circuit rating of up to 25kA.
Product Details
| Brand | Live Electrical | Datasheet | Download |
|---|
