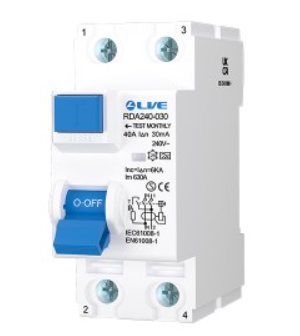

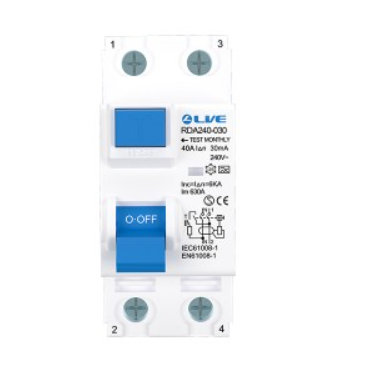

RDA240-030
2 Pole 40A 30mA RCD Type A High Immunity Double Pole RCD Live Electrical
2 Pole 40A 30mA RCD Type A High immunity
- Product Type:Double Pole RCD
- Current Rating:40
- Number of Module:2
- Operating SC Capacity:6kA
- Device Type:Type A
- Residual Current (mA):30
- Product Code:RDA240-030
Product Information
TYPE A RESIDUAL CURRENT DEVICES
Construction and Feature
Provides protection against earth fault/leakage current and provides point of isolation;
High breaking current withstand capacity Flame resistant plastic parts endures
abnormal heating and strong impact; Automatically disconnect the circuit when earth
fault/leakage current occurs and exceeds the rated sensitivity; lndependent of power
supply and line voltage, and free from external interference, voltage fluctuation.
Technical Data
●Pole No.: 2, 4
●Rated current(A): 25, 40,63, 80, 100A
●Rated voltage: 230/400V AC
●Rated frequency: 50/60Hz
●Rated residual operating current I△(mA):30,100,300
●Rated residual non operating current: 0.5I△n
●Rated conditional breaking current Inc: 6000A
●Tripping duration Instantaneous tripping≤0.1s
●Residual tripping current range:0.5I△n~l△n
●Electro-mechanical endurance:4000 cycles
●Connection capacity Rigid conductor up to 25mm 2
●Connection terminal Screw terminal
●Pillar terminal with clamp
●Fastening torque 2.0 Nm
●Installation: On symmetrical DIN rail 35mm
●Panel mounting
●Bidirectional
●Type A
Product Details
| Brand | Live Electrical |
|---|---|
| Weight (kg) | 0.000000 |
| Amp | 40 | Datasheet | Download |
