RAYMG1000
Raytech Magic Resin Gel 1 Litre
Magic Resin Gel from Raytech is an insulating and sealing polymeric fluid with fast cross linking at room temperature.
The insulating and sealing gel, when cast in suitable casings, ensures an IP68 degree of protection and it is able to replace all types of resins.
- For high temperature applications.
- Quick cross linking (only 10 minutes)
- Re-enterable also after long working periods
- Non-toxic and safe with no shelf life
- Low viscosity
Product Information
Raytech Magic Gel is a two-part, cold-curing insulating gel for sealing and insulating low-voltage cable connections. Poured into a suitable joint shell, junction box or enclosure, it protects terminations against moisture, which makes it useful for outdoor connections, buried joints and garden or pond supplies.
The two components are mixed in equal parts and cross-link in about 10 minutes at room temperature into a soft, transparent gel. Its low viscosity lets it flow around conductors and into small gaps before it sets. Unlike a hard resin, the cured gel can be cut back to reach the connection later, so joints can be inspected or altered without being replaced.

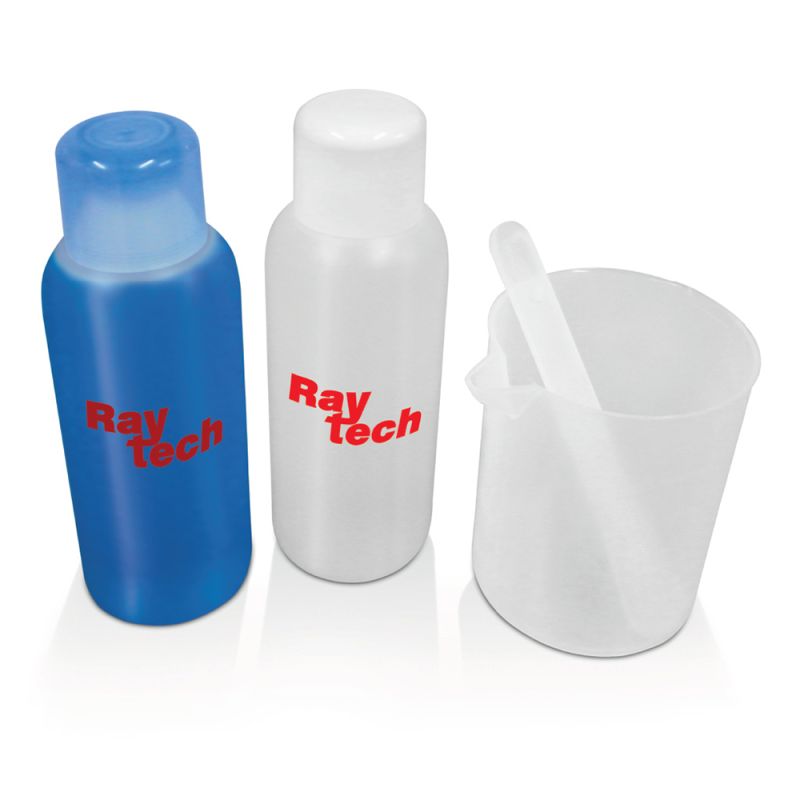

- 1 litre pack, supplied as two bottles
- 1:1 mix ratio, cross-links in about 10 minutes at 23°C
- IP68 when cast in a suitable casing
- For installations up to 1kV
- Re-enterable
Raytech describe the gel as non-toxic and without a shelf life when kept sealed. Always follow the manufacturer's instructions for mixing and filling, and make sure the enclosure is suitable for gel filling.
Specifications
| Manufacturer | Raytech |
|---|---|
| Product | Magic Gel |
| Our code | RAYMG1000 |
| Pack size | 1 litre (2 bottles) |
| Mix ratio | 1:1 |
| Cross-linking time | Approx. 10 minutes at 23°C |
| Protection | IP68 when cast in a suitable casing |
| Voltage | Installations up to 1kV |
| Volume resistivity | > 2 x 10^15 ohm·cm |
| Re-enterable | Yes |
Product Details
| Brand | Ray Tech | Datasheet | Download |
|---|
Delivery Information
| Location | Shipping Method | Shipping Charges | Timescales |
|---|---|---|---|
| Mainland UK | Standard Delivery | £3.95 | 3-5 working days |
| Northern Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
| Republic of Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
Free delivery on orders over £30 (ex VAT).
* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.
Cancellations and Returns
Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions
- The Goods are in all original packaging
- The materials contain all original documentation (instructions, manuals, warranties or any other literature)
- Product is deemed by our returns department to be in a re-sellable condition
All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.
Faulty Products
- Products that are faulty must be returned within the manufacturer’s warranty period.
- The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
- Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.
Frequently Asked Questions

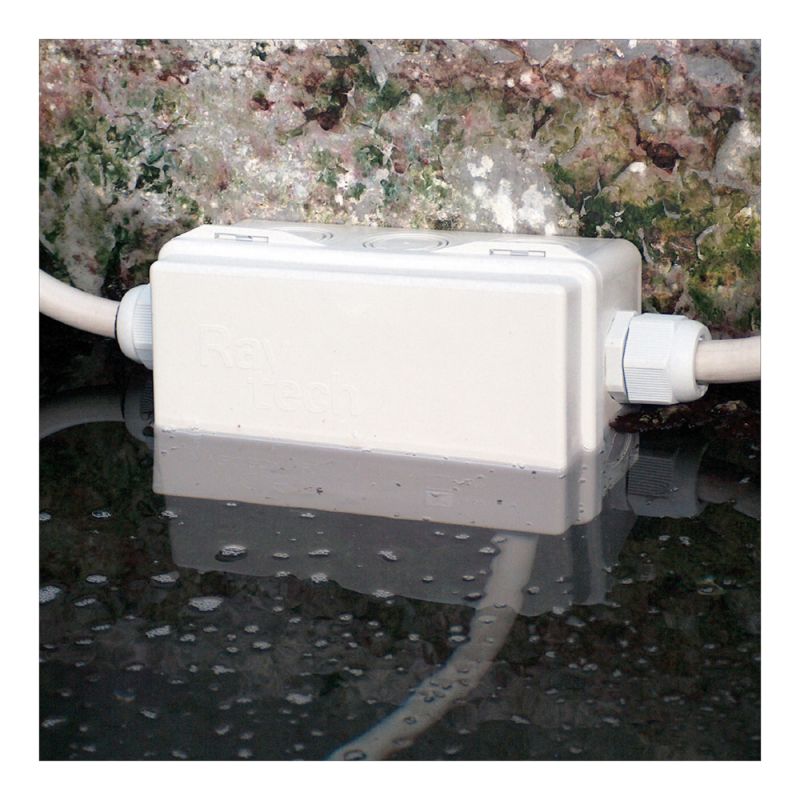

Yes, it is commonly used to seal low-voltage joints and connections against water. The IP68 figure applies when the gel fills a suitable casing, such as a joint shell or sealed box, so the enclosure is part of the protection. Check the manufacturer's instructions for burial depth, immersion and how the enclosure should be filled.

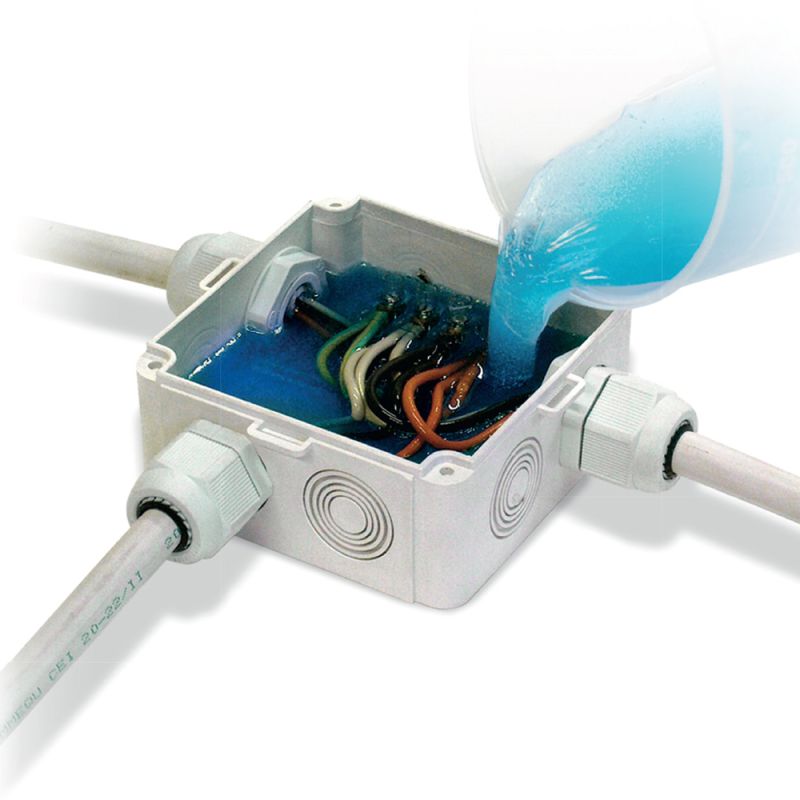

Pour equal amounts of the two components into a clean container and stir thoroughly until the mix is uniform, then pour it straight into the enclosure. It begins to cross-link within a few minutes, so mix only what you can use straight away. Check the manufacturer's instructions for the full mixing procedure.
Yes. Once cured, the gel stays soft and can be cut or peeled away from the conductors to reach the connection, even after a long time in service. This makes it easier to inspect, test or alter a termination than with a hard-setting resin, which normally means the whole joint must be replaced.
That depends on the size of the enclosure or joint shell and how much space is taken up by the cables and connectors. Measure the internal volume of the casing and allow for the space taken by the conductors. Mix the gel in batches to reduce waste if you are filling several small enclosures.
