19050

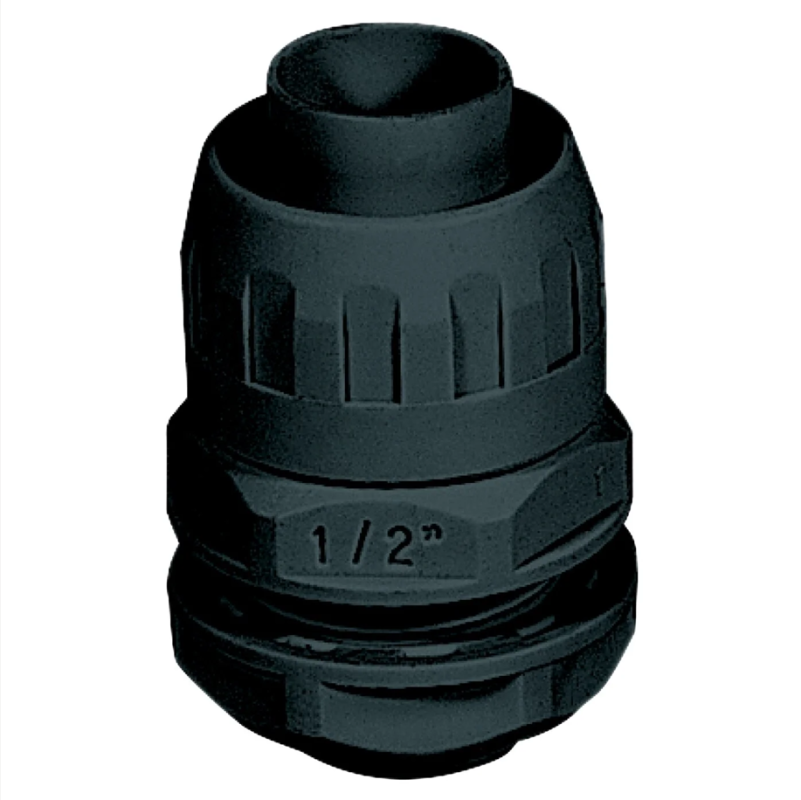

ECGX16MN IP65 Spiral Conduit Box Connector 16mm to M20 Black
The ECGX16MN IP65 Spiral Conduit Connector is designed to connect 16mm flexible spiral conduit to a junction box using an M20 metric thread. Made from shock-resistant technopolymer, it features a self-locking conduit inlet, rotating upper section and pre-assembled locknut.
Key Features
- Suitable for 16mm flexible spiral conduit
- M20 metric thread
- Black finish
- IP65 rated
- Shock-resistant PP-based technopolymer construction
- Self-locking threaded conduit inlet
- Rotating upper section
- Pre-assembled locknut
- V2 self-extinguishing grade to UL94
- Abnormal heat resistance up to 750°C
- Suitable for industrial and commercial applications
- Compliant with EN 61386-1, EN 61386-23 and UL 1696
Product Information
The ECGX16MN IP65 Spiral Conduit Box Connector provides a secure connection between 16mm flexible spiral conduit and junction boxes with an M20 metric thread.
Manufactured from shock-resistant PP-based technopolymer, the connector is designed for reliable use in industrial and commercial electrical installations. It features a self-locking threaded conduit inlet to help provide a secure fit, while the rotating upper section makes positioning and installation easier.
The connector is supplied with a pre-assembled locknut and offers V2 self-extinguishing performance in accordance with UL94. It also provides resistance to abnormal heat up to 750°C.
Technical Specification
| Specification | Details |
|---|---|
| Product Code | ECGX16MN |
| Product Type | Spiral Conduit to Box Connector |
| Conduit Size | 16mm |
| Thread Size | M20 |
| Thread Type | Metric |
| Colour | Black |
| IP Rating | IP65 |
| Material | Shock-Resistant PP-Based Technopolymer |
| Conduit Inlet | Self-Locking Thread |
| Upper Section | Rotating |
| Locknut | Pre-Assembled |
| Self-Extinguishing Rating | V2 to UL94 |
| Abnormal Heat Resistance | Up to 750°C |
| Standards | EN 61386-1, EN 61386-23, UL 1696 |
Product Details
| Brand | PEMCO | Datasheet | Download |
|---|
