19042

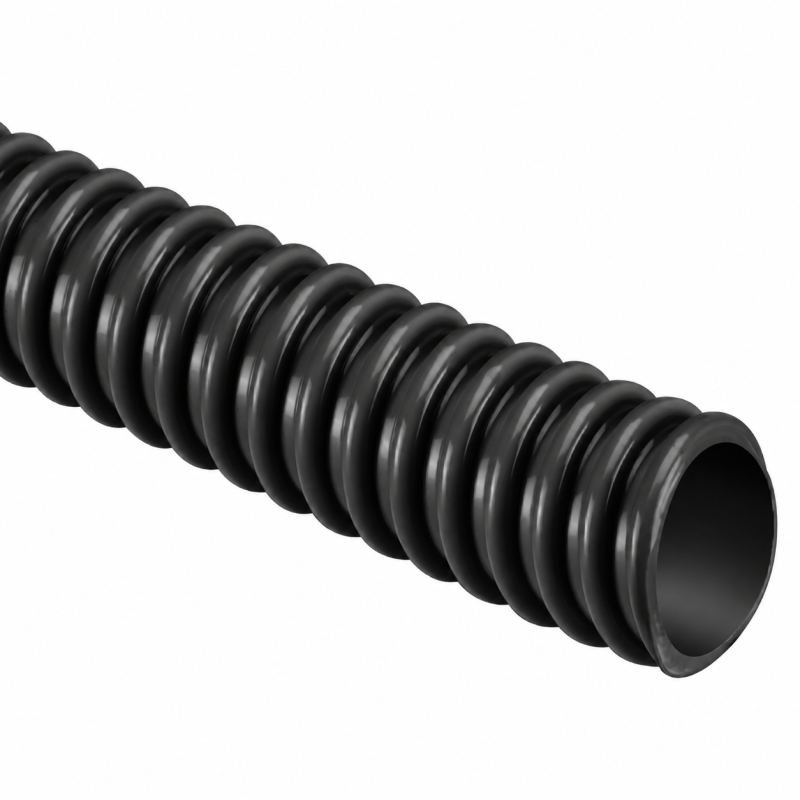

ECGFE25N Flexible Spiral PVC Conduit 25mm x 30m Black
The ECGFE25N Flexible Spiral Conduit is a 25mm black PVC conduit supplied in a 30m coil. Designed for industrial and commercial electrical installations, it offers flexibility, impact resistance, UV resistance and 320N compression resistance.
Key Features
- 25mm nominal internal diameter
- 30m coil
- Black finish
- Flexible spiral PVC construction
- Impact-resistant rigid PVC internal spiral
- Impact-resistant soft PVC external covering
- UV resistant
- 320N compression resistance
- Self-extinguishing in less than 30 seconds
- Abnormal heat resistance up to 960°C
- 100MΩ insulation resistance at 500V for 1 minute
- 2000V dielectric strength at 50Hz for 15 minutes
- Light classification 23114
- Suitable for industrial and commercial applications
- Compliant with EN 61386-1, EN 61386-23 and UL 1696
Product Information
The ECGFE25N Flexible Spiral PVC Conduit provides flexible and durable cable protection for a wide range of electrical installations.
Manufactured with an impact-resistant rigid PVC internal spiral and an impact-resistant soft PVC external covering, the conduit is designed to provide reliable mechanical protection while remaining flexible during installation. Both the internal and external materials are UV resistant.
The conduit offers 320N compression resistance and is classified as Light 23114 in accordance with EN 61386 standards. It is also self-extinguishing in less than 30 seconds and resistant to abnormal heat up to 960°C.
Supplied in a 30 metre coil with a 25mm nominal internal diameter, it is suitable for industrial, commercial and general electrical cable management applications.
Technical Specification
| Specification | Details |
|---|---|
| Product Code | ECGFE25N |
| Product Type | Flexible Spiral PVC Conduit |
| Nominal Internal Diameter | 25mm |
| Coil Length | 30m |
| Colour | Black |
| Compression Resistance | 320N |
| Internal Spiral Material | Impact-Resistant Rigid PVC-Based Technopolymer |
| External Cover Material | Impact-Resistant Soft PVC-Based Technopolymer |
| UV Resistant | Yes |
| Flame Propagation Resistance | Self-Extinguishing in Less Than 30 Seconds |
| Abnormal Heat Resistance | Up to 960°C |
| Temperature Range – EN 61386 | +5°C to +60°C |
| Temperature Range – UL 1696 | +5°C to +70°C |
| Insulation Resistance | 100MΩ at 500V for 1 Minute |
| Dielectric Strength | 2000V at 50Hz for 15 Minutes |
| Classification | Light 23114 |
| Standards | EN 61386-1, EN 61386-23, UL 1696 |
Product Details
| Brand | PEMCO | Datasheet | Download |
|---|
