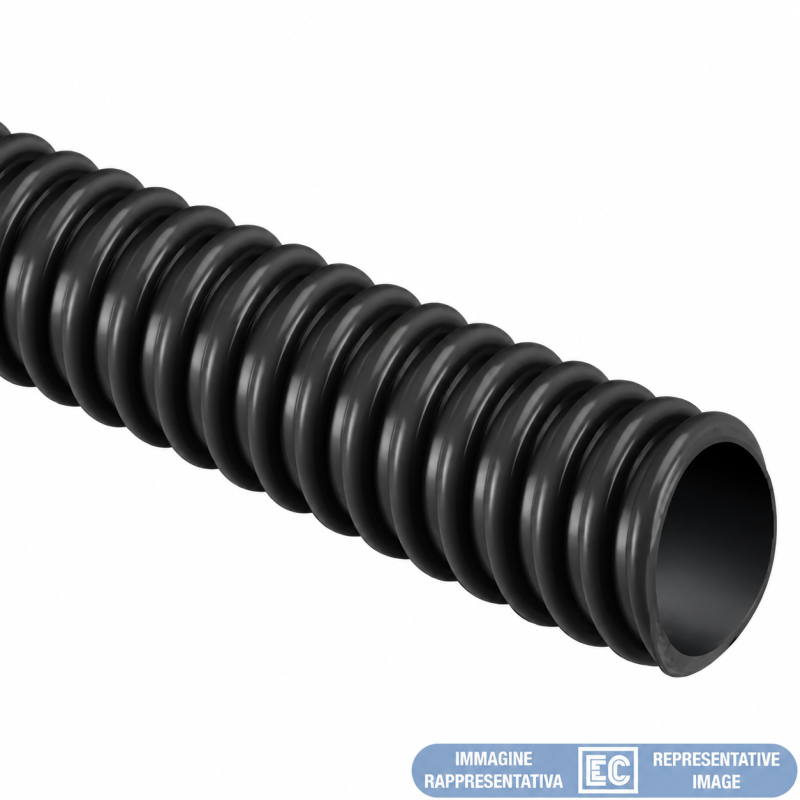

ECGFE16N Flexible Spiral PVC Conduit 16mm x 30m Black
The ECGFE16N Flexible Spiral Conduit is a 16mm black PVC conduit supplied in a 30m coil. Designed for industrial and commercial electrical installations, it features a flexible, impact-resistant construction with UV resistance, self-extinguishing properties and 320N compression resistance.
Key Features
- 16mm nominal internal diameter
- 30m coil
- Black finish
- Flexible spiral PVC construction
- Impact-resistant rigid PVC internal spiral
- Soft PVC external covering
- UV resistant
- 320N compression resistance
- Self-extinguishing in less than 30 seconds
- Abnormal heat resistance up to 960°C
- 100MΩ insulation resistance at 500V for 1 minute
- 2000V dielectric strength at 50Hz for 15 minutes
- Light classification 23114
- Suitable for industrial and commercial applications
Product Information
The Elettrocanali ECGFE16N Flexible Spiral PVC Conduit provides flexible protection for electrical cables in industrial and commercial installations.
Constructed with an impact-resistant rigid PVC internal spiral and a soft PVC external covering, the conduit combines flexibility with mechanical protection. Both materials are UV resistant, making the conduit suitable for demanding installation environments.
The conduit has a compression resistance of 320N and is classified as Light 23114 in accordance with EN 61386 standards. It is also self-extinguishing in less than 30 seconds and offers resistance to abnormal heat up to 960°C.
Supplied as a 30 metre coil with a 16mm nominal internal diameter, the ECGFE16N is suitable for a wide range of cable management and electrical installation applications.
Technical Specification
| Specification | Details |
|---|---|
| Product Code | ECGFE16N |
| Product Type | Flexible Spiral PVC Conduit |
| Nominal Internal Diameter | 16mm |
| Coil Length | 30m |
| Colour | Black |
| Compression Resistance | 320N |
| Material – Internal Spiral | Impact-Resistant Rigid PVC-Based Technopolymer |
| Material – External Cover | Impact-Resistant Soft PVC-Based Technopolymer |
| UV Resistant | Yes |
| Flame Propagation Resistance | Self-Extinguishing in Less Than 30 Seconds |
| Abnormal Heat Resistance | Up to 960°C |
| Operating Temperature – EN 61386 | +5°C to +60°C |
| Operating Temperature – UL 1696 | +5°C to +70°C |
| Insulation Resistance | 100MΩ at 500V for 1 Minute |
| Dielectric Strength | 2000V at 50Hz for 15 Minutes |
| Classification | Light 23114 |
| Standards | EN 61386-1, EN 61386-23, UL 1696 |
