RTHL

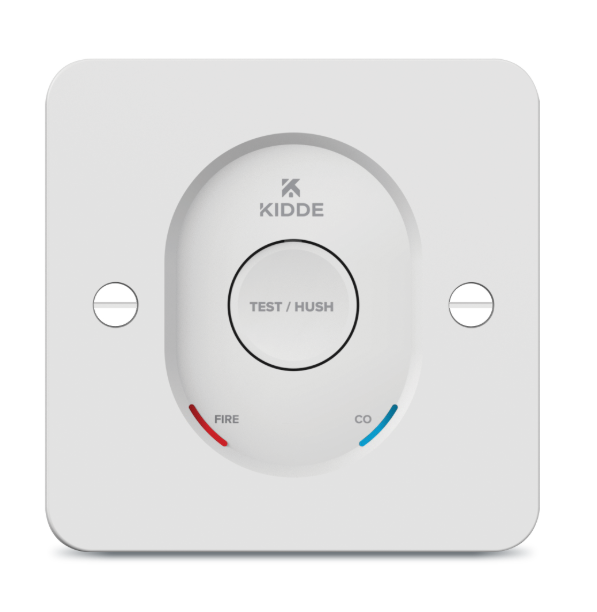

Kidde Fire & CO Alarm Control Switch
-
Test and Hush Kidde hardwired alarms from a central, easy to reach location
-
Red and blue LEDs clearly indicate the type of alarm that has sounded so that appropriate action can be taken
-
Connect to any convenient point in a new or existing Kidde hardwire alarm installation
-
Multifunction button:
- Test – All interconnected alarms in the system will sound an alarm
- Hush/Locate – Silence all alarms in the system except the initiating device
-
Power 230 VAC, 50 Hz, 19 W
-
Warranty 10-years
Product Information
Key Features
Enables manual execution of the following functions without requiring direct, physical access to the installed alarms:
- Testing alarm operation
- Silencing of alarms (hush feature)
- Increases accessibility for the elderly or disabled who would otherwise be unable to easily test or hush the alarms.
- Enables residents of properties with high ceilings to remotely test or hush their alarms.
Specifications
| Order Code |
RTHL
|
| Compatibility: |
Kidde and FIREX hard-wired smoke, heat and CO alarms
|
| Power: |
230 VAC, 50 Hz, 19 W
|
| Operating Temperature Range: |
0 °C to +40 °C
|
| Operating Humidity Range: |
Up to 93% RH (non-condensing)
|
| Storage and Transport: |
-20 °C to +50 °C, 5% to 95% RH (non-condensing)
|
| Mounting: |
BS 4662 1-gang. Mininum depth 25 mm
|
| Number of Interconnected devices: |
24 devices (of which 18 can be initiating)
|
| Compliance: |
CE, UKCA
|
| Warranty: |
10-years
|
| Unit Dimensions (H, W, D): |
86 mm x 86 mm x 10 mm (10mm protrudes from the wall when the unit is installed in wall back box)
|
| Unit Weight (excluding packaging): |
75 g
|
| Case Quantity: |
6 units
|
Product Details
| Brand | Kidde | Datasheet | Download |
|---|
