DK0404B

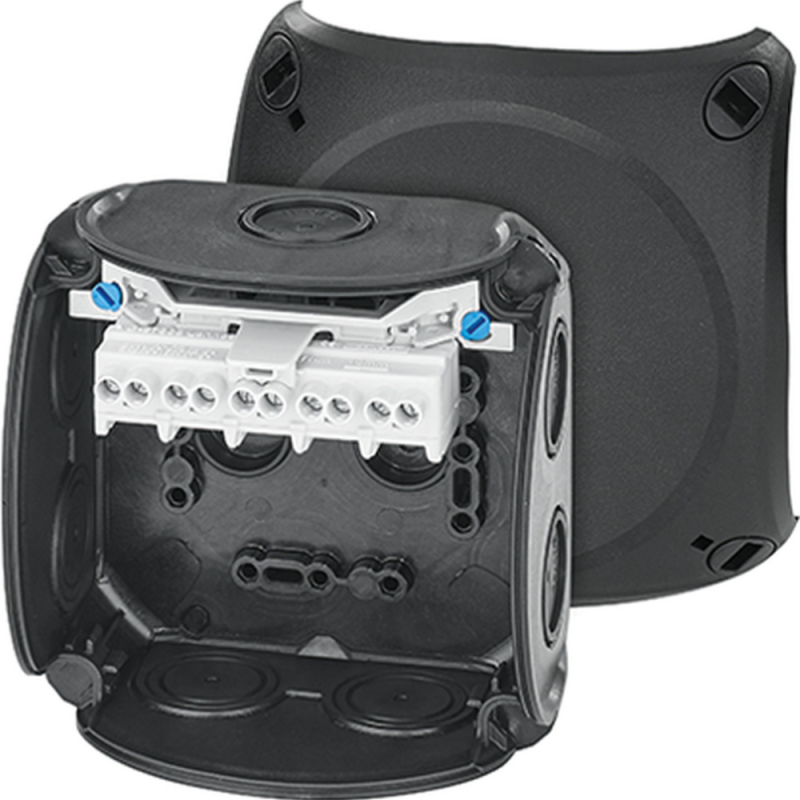

Cable Junction Box 4mm² Hensel
This is the Hensel Cable Junction Box 4mm².
Key Features:
- Material: Polypropylene
- Temperature resistance: -25 °C up to +80 °C
- Height: 104 mm
- Width: 104 mm
- Depth: 70 mm
- Halogen-free
- IP Rating: IP66
- Silicone-free
- Number of clamping units per pole: 2
- Connection type: Screw connection
- Ferrule required for flexible conductors: No
- Dismantling length: 10mm
- Tightening torque of the terminal: 0.7 Nm
- Standards: DIN EN 60670-1/-22, IEC 60670-1/-22
Product Information
The Hensel Cable Junction Box is a durable and practical solution for safe cable management in both normal indoor conditions and protected outdoor environments. Designed to accommodate conductors up to 4mm², it features two clamping units per pole with a secure screw connection, eliminating the need for ferrules on flexible conductors. With a dismantling length of 10 mm and a terminal tightening torque of 0.7 Nm, it ensures a reliable and straightforward installation. The box includes a built-in branch terminal and comes with elastic membranes that allow easy cable entry, which can also be removed to fit cable glands. Compact in size at 104 x 104 x 70 mm (H x W x D), it’s a versatile choice for professional-grade electrical installations.
Product Details
| Brand | Hensel |
|---|---|
| Socket Boxes | PVC Boxes | Datasheet | Download |
