GC8EV40S
EV Distribution Board Complete With Surge Protection GARO
IP65 rated EV distribution board complete with surge protection, 40A RCBO and 100A isolator. Designed for safe and reliable EV charger installations.
- Complete EV distribution board with surge protection
- Includes 40A RCBO and 100A isolator
- 63A DP MCB with 10kA short circuit capacity
- IP65 rated for indoor and outdoor use
- IK08 impact resistance
- 8 total ways with 1 spare way
- Halogen free ABS and polycarbonate construction
- Glow wire tested to 650°C
- Ball pressure tested to 70°C
- Operating temperature: -25°C to +40°C
- Manufactured to EN 61439-3
Product Information

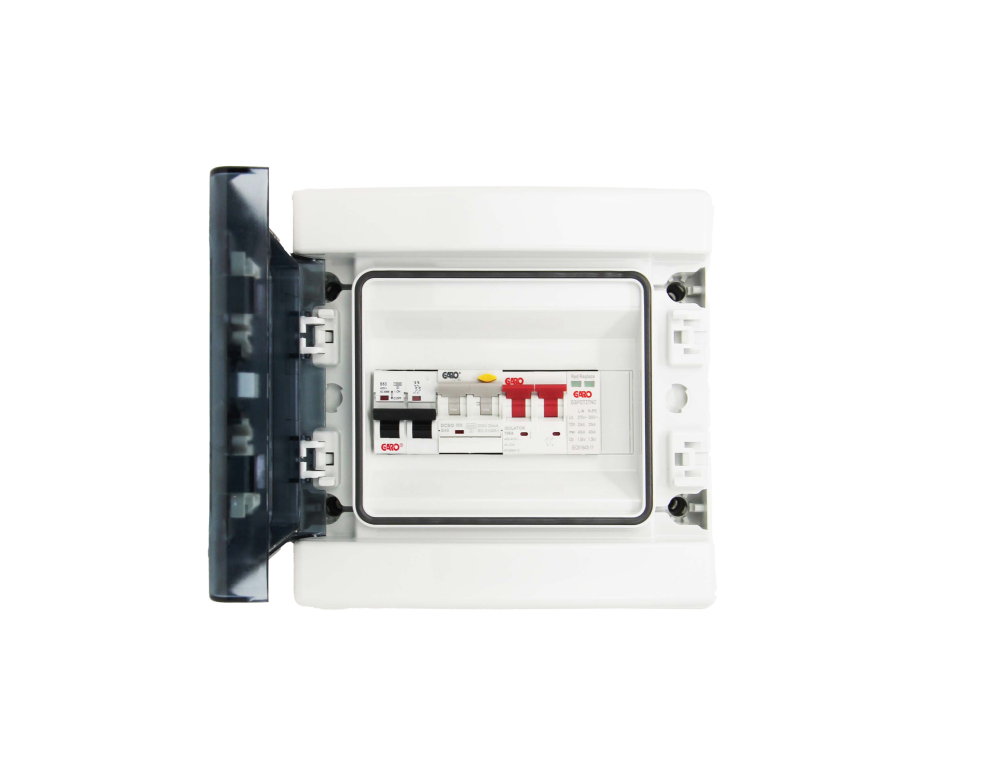

The GC8EV40S EV Distribution Board is a complete, ready-to-install solution designed specifically for electric vehicle charging applications. Supplied with integrated surge protection, a 40A RCBO, and a 100A isolator, this board provides reliable circuit protection for EV installations in domestic and commercial environments.
Built with a durable ABS and polycarbonate enclosure, the unit is both halogen free and highly resistant to impact, achieving an IK08 rating. The enclosure is also IP65 rated, offering protection against dust and water ingress, making it suitable for both indoor and outdoor installations.
The board features a 63A double pole MCB with a 10kA rated conditional short circuit capacity, ensuring dependable protection and compliance with modern electrical installation standards. With 8 total ways and 1 free way remaining, it provides flexibility for future expansion or additional circuit integration.
Designed for long-term performance, the enclosure passes a 650°C glow wire test and a 70°C ball pressure test, demonstrating excellent resistance to heat and fire-related conditions. Suitable for operation in temperatures ranging from -25°C to +40°C, the GC8EV40S is engineered for demanding environments.
Manufactured to EN 61439-3 standards, this EV consumer unit combines durability, safety and practicality for professional EV charger installations.
Technical Specification
- Code: GC8EV40S
- Rated Current: 63A
- Rated Voltage: 230V AC
- Frequency: 50/60Hz
- Rated Conditional Short Circuit (Icc): 10kA
- Main Device: 63A DP MCB 10kA
- Additional Devices: 40A RCBO & 100A Isolator
- Degree of Protection: IP65
- Impact Resistance: IK08
- Total Number of Ways: 8
- Free Ways: 1
- Dimensions: 231mm (H) x 238mm (W) x 118mm (D)
- Terminal Capacity: 25mm²
- Material: ABS & Polycarbonate
- Operating Temperature: -25°C to +40°C
- Storage Temperature: -35°C to +55°C
- Standard: EN 61439-3
- Mechanical Components Warranty: 5 Years
- Electronic Components Warranty: 2 Years
Product Details
| Brand | GARO | Datasheet | Download |
|---|
