MCBGRB263
63A MCB Type B DP 6kA GARO

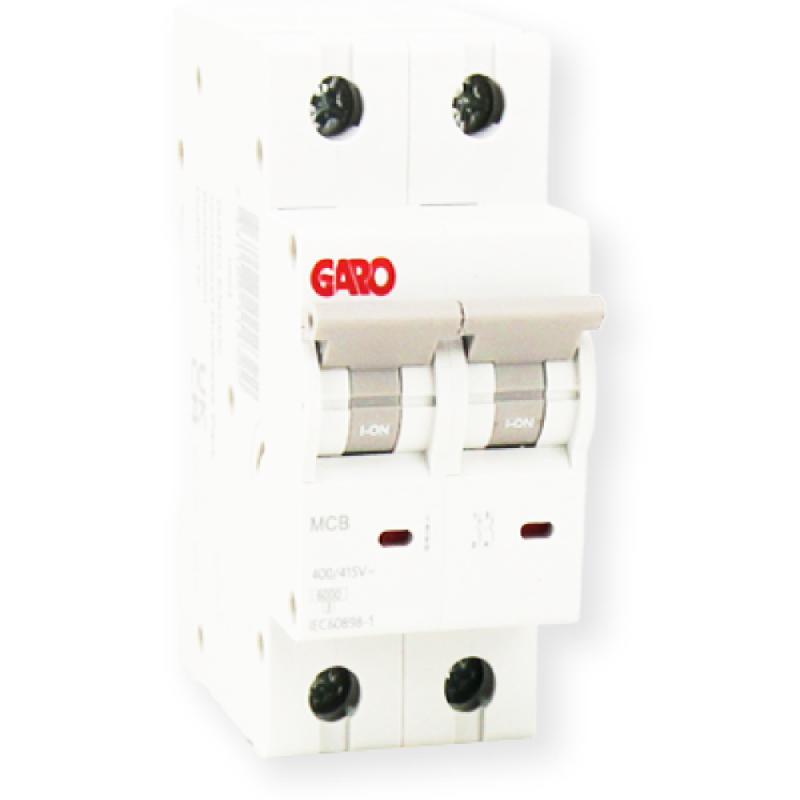

This is the GARO 63A MCB Type B DP 6kA.
Key Features:
- Rated current: 6 – 63A
- Rated voltage: 230/400 V AC
- Frequency: 50/60 Hz
- Rated short-circuit capacity: 6 kA
- Tripping characteristic: B
- Shock resistance: 30g, min. 2 shocks, t = 13 mins
- Back-up fuse: 100A gG
- Degree of protection: IP20
- Terminals: 1–25 mm², max 2.5 Nm
- Built-in width: 18 mm (per pole)
- Height: 82 mm
- Depth: 75 mm
- Net weight: 0.33 kg
- Ambient temperature: -25°C to +55°C
- Storage temperature: -35°C to +55°C
- Overvoltage category: III
- Sealing possibility: Yes
- Electrical endurance (operating cycles): 10,000
- Mechanical endurance (operating cycles): 20,000
- Mounting: On DIN rail (EN 60715)
- Standards: EN 60898, IEC 60898
Product Information
The GARO 63A MCB Type B Double Pole 6kA is engineered for dependable circuit protection in high-demand environments. With a Type B tripping characteristic, it’s ideal for residential and light commercial applications where precision and safety are critical. This MCB safely interrupts overloads and short circuits up to 6kA, ensuring system integrity and user protection.
Product Details
| Brand | GARO |
|---|---|
| IP Rating | IP20 |
| Characteristic | B |
| Current Rating (Amp) | 63 |
| Short Circuit Rating | 6KA | Datasheet | Download |
