MCBGRC210

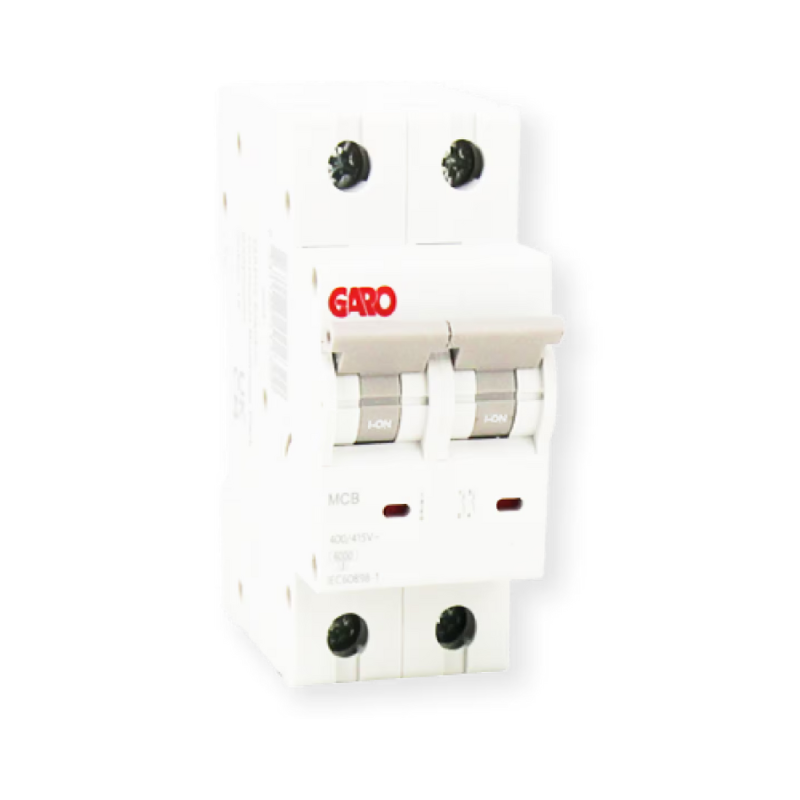

10A MCB Type C DP 6kA GARO
This is the GARO 10A MCB Type C DP 6kA.
Key Features:
- Rated current: 6 – 63A
- Rated voltage: 230/400 V AC
- Frequency: 50/60 Hz
- Rated short-circuit capacity: 6 kA
- Tripping characteristic: C
- Shock resistance: 30g, min. 2 shocks, t = 13 mins
- Back-up fuse: 100A gG
- Degree of protection: IP20
- Terminals: 1–25 mm², max 2.5 Nm
- Built-in width: 18 mm (per pole)
- Height: 82 mm
- Depth: 75 mm
- Net weight: 0.33 kg
- Ambient temperature: -25°C to +55°C
- Storage temperature: -35°C to +55°C
- Overvoltage category: III
- Sealing possibility: Yes
- Electrical endurance (operating cycles): 10,000
- Mechanical endurance (operating cycles): 20,000
- Terminal cover: Available
- Locking device: Available
- Mounting: On DIN rail (EN 60715)
- Standards: EN 60898, IEC 60898
Product Information
The GARO 10A MCB Type C Double Pole 6kA is a robust and reliable circuit protection device, ideal for applications with higher inrush currents such as lighting, motors, or small machinery. Featuring a Type C tripping curve, it offers effective protection against overloads and short circuits, while allowing for safe operation in circuits with moderate start-up surges.
Product Details
| Brand | GARO |
|---|---|
| IP Rating | IP20 |
| Characteristic | C |
| Short Circuit Rating | 6KA | Datasheet | Download |
