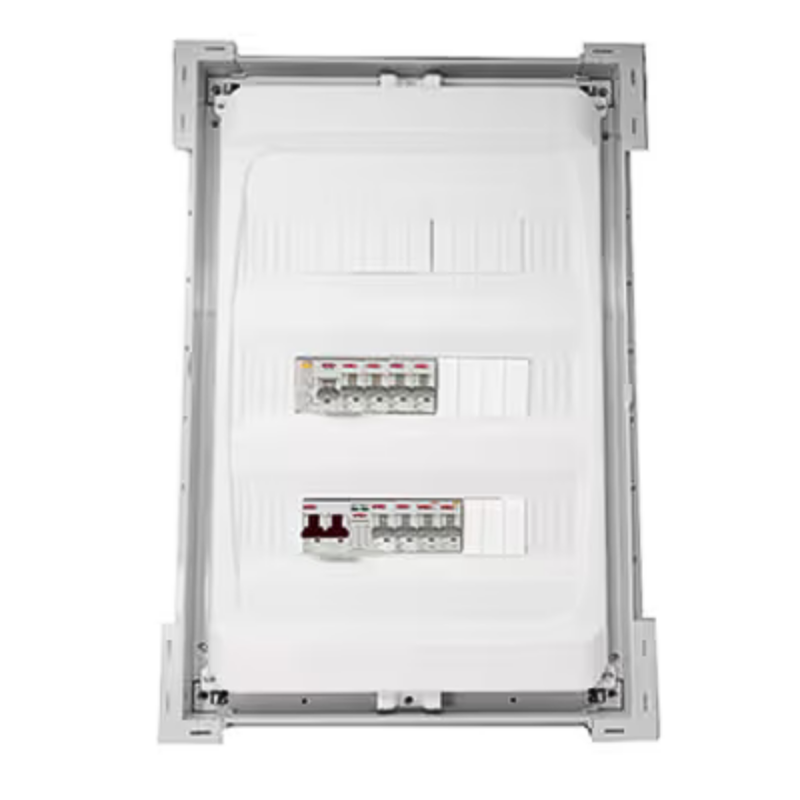

F342B-8S
Flush Domestic Consumer Unit with Main 10kA MCB & Surge Protection 42 Mod GARO
The GARO F342B-8S is a flush-mounted domestic consumer unit designed for modern residential installations, offering built-in surge protection and a 10kA main MCB for enhanced safety and compliance.
Flush domestic consumer unit with 10kA main MCB and built-in surge protection. 80A rated, 230V AC, IP40, supplied with RCBOs, RCCB and MCBs. Ideal for residential installations to IS 10101.
Product Information
Key Features:
- Flush domestic consumer unit
- Main device: Double pole MCB, 10kA, 63A
- Includes additional protective devices: 2 x RCBO, 1 x RCCB, 6 x MCB
- Built-in double pole surge arrestor (1 mod)
- Rated current: 80A
- Rated voltage: 230V AC
- Frequency: 50/60 Hz
- Short-circuit capacity: 6 kA (IEC 60898-1)
- Degree of protection: IP40
- Total number of free ways: 29
- Main terminals: 25mm² L, N & E
- Maximum backup protection: 80A
- Standard: Tested to IEC 60695-2-11
- Compliance: IS 10101
- Enclosure colour: White (RAL 9003)
Dimensions:
- Height (H): 594 mm
- Width (W): 354 mm
- Depth (D): 87 mm
This unit is ideal for electricians and contractors looking for a ready-to-install, high-protection board with surge protection already integrated, helping protect sensitive electrical and EV/PV equipment in the home.
Product Details
| Brand | GARO | Datasheet | Download |
|---|
