Z-2651B

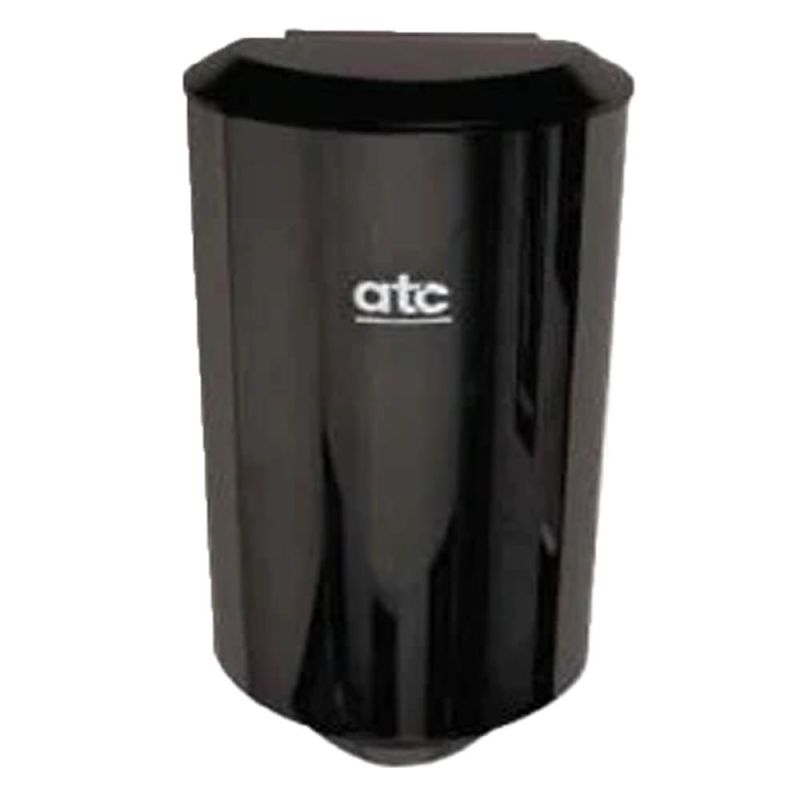

ATC Cub High Speed Hand Dryer Black
The stainless stell ATC Cub, finished in black brings a smooth and unique shape to the high-speed hand dryer market which is popular with designers. The compact dimensions make sure that this hand dryer will take up limited wall space.
- Motor Type – Brush Type
- Material - Stainless Steel, finished in black
- Power Output – 1150Watts
- Motor Power – 500 Watts
- Heating Power – Off/650W
- Amps – 5.2 Amps
- Sensor – 0-250mm
- Drying Time – 15 seconds
- Air Speed – 65 m/s
Customers Also Purchased (3)
Product Information
The ATC Cub is a compact, high speed, automatic hand dryer for washrooms where space is limited, such as cafés, offices, small shops and clinics. Despite its small footprint, it delivers air at around 65 m/s for quick drying. This version has a matt black painted steel cover, which suits modern and darker washroom schemes.
An infrared sensor starts the dryer when hands are placed underneath, and it stops automatically if left running. The heating element can be switched off to save energy where warm air is not needed. Thermal cut-outs protect the motor and heater. The cover is secured with vandal-resistant screws, which helps in busy public washrooms.
- Compact design at 280 x 153 x 162mm
- Air speed of approximately 65 m/s
- Sensor operation with automatic shut-off
- Switchable heater
- Matt black painted steel cover with vandal-resistant fixings
Fit at a height that suits the users, keeping the clearances given in the manufacturer's instructions and avoiding positions directly above sinks or counters. Installation should be carried out by a competent electrician and must comply with current wiring regulations.
Specifications
| Model | ATC Cub (black) |
|---|---|
| Air speed | 65 m/s |
| Supply | 220-240V, 50Hz |
| IP rating | IPX1 |
| Dimensions (H x W x D) | 280 x 153 x 162mm |
| Weight | 3.2kg |
| Operation | Automatic infrared sensor |
| Heater | Switchable on/off |
| Cover | Steel, matt black painted |
Product Details
| Brand | atc |
|---|---|
| Wattage | 1150W |
| Product Range | Hand Dryers | Datasheet | Download |
Delivery Information
| Location | Shipping Method | Shipping Charges | Timescales |
|---|---|---|---|
| Mainland UK | Standard Delivery | £3.95 | 3-5 working days |
| Northern Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
| Republic of Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
Free delivery on orders over £30 (ex VAT).
* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.
Cancellations and Returns
Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions
- The Goods are in all original packaging
- The materials contain all original documentation (instructions, manuals, warranties or any other literature)
- Product is deemed by our returns department to be in a re-sellable condition
All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.
Faulty Products
- Products that are faulty must be returned within the manufacturer’s warranty period.
- The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
- Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.
Frequently Asked Questions
The Cub is rated IPX1, which protects against vertically dripping water only. ATC advises against fitting it directly above sinks or counters or in areas of high humidity. Position it away from splashing, and check the manufacturer's instructions and current wiring regulations for the location you have in mind.
The Cub runs on a standard 220-240V single phase supply. It is usually connected through a fused spur so it can be isolated for maintenance. Confirm the fuse rating against the power shown on the rating plate and the manufacturer's instructions. Installation should be carried out by a competent electrician.
Yes. The heating element can be switched off so the dryer runs on unheated air only. This lowers running costs, and the high air speed still dries hands. Many sites leave the heater on in winter and switch it off in warmer months.
Mounting height depends on the users, for example adults, children or wheelchair users. ATC provides a recommended height chart in its installation guide and advises keeping at least 150mm clear on either side. Check the manufacturer's instructions, and consider accessibility requirements for the building.
