6193B 4.0BB

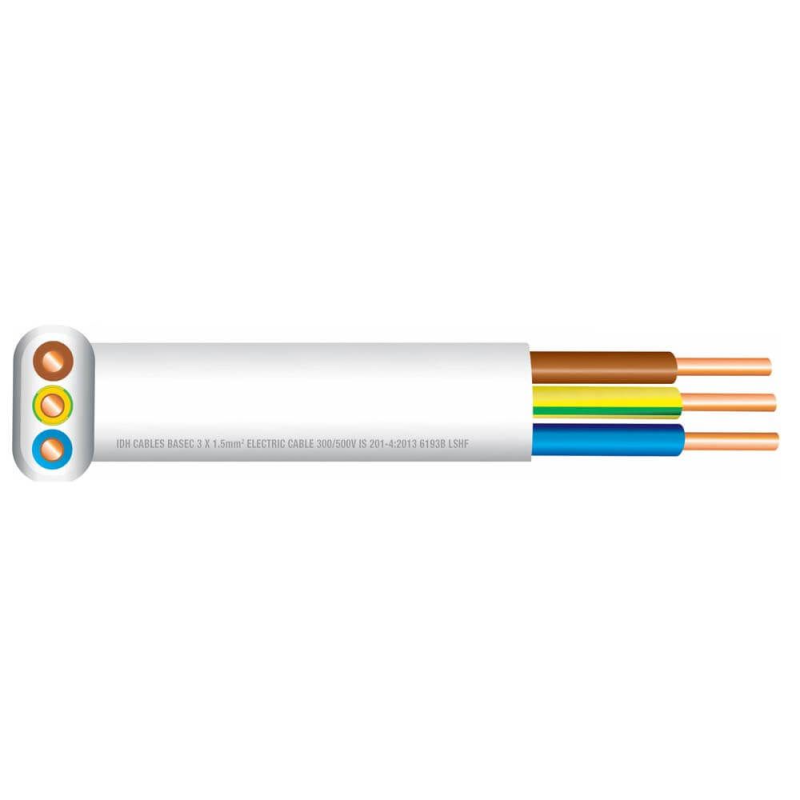

6193B 4.0mm LSF Twin & Insulated Earth, Blue Brown (100m Coils)
This is a 4mm sized cable from the 6193B range of low smoke zero halogen polyethylene 2 core flat twin with insulated earth cables. For use in general fixed installations.
Key Features:
- Cable size: 4mm
- Radial thickness of insulation: 0.8mm
- Radial thickness of sheath: 0.9mm
- Core colours: Green/yellow, brown and blue
- Insulation: Low Smoke Zero Halogen Polyethylene
- Sheathing: White LSZH Polyethylene
- Voltage rating: 300/500 volt
- Approvals: IS201-4: 2013 BASEC, BS EN 60338
- Meets regulations in the Republic of Ireland
Customers Also Purchased (3)
Product Information
This 100m coil of 4.0mm² 6193B flat twin cable has a full-size insulated earth. It is built for fixed wiring where a separate, sleeved green/yellow protective conductor is required in place of the usual reduced bare earth found in standard twin and earth. The live and neutral cores are brown and blue, and the earth core is also 4.0mm², so no sleeving is needed at terminations.
The cable is made to the Irish standard IS 201-4 and is aimed at installations that must meet the Republic of Ireland wiring rules. The insulation and the white outer sheath are both low smoke zero halogen (LSZH) polyethylene. In a fire it gives off less smoke than PVC cable and releases no halogen acid gases. The 4.0mm² conductors are stranded copper.
- Two 4.0mm² cores plus a full-size 4.0mm² insulated earth
- Brown, blue and green/yellow core colours
- LSZH insulation and white LSZH sheath
- 300/500V rated, for fixed indoor installations
- Supplied in a 100m coil
Cable size must be chosen by design for the load, protective device, installation method and voltage drop.
Specifications
| Cable type | 6193B flat twin with insulated earth |
|---|---|
| Conductor size | 2 x 4.0mm² + 4.0mm² insulated earth |
| Conductor | Stranded plain annealed copper (7 wires) |
| Core colours | Brown, blue, green/yellow |
| Insulation | LSZH polyethylene, 0.8mm radial thickness |
| Sheath | White LSZH polyethylene, 1.0mm radial thickness |
| Voltage rating | 300/500V |
| Standard | IS 201-4:2013 (BASEC approved) |
| Coil length | 100m |
Product Details
| Cable Type | Twin & Earth |
|---|---|
| Cable Code | 6193B |
| No of Cores | 3 |
| Size | 4mm |
| Length of Cable | 100 Metre Coil | Datasheet | Download |
Delivery Information
| Location | Shipping Method | Shipping Charges | Timescales |
|---|---|---|---|
| Mainland UK | Standard Delivery | £3.95 | 3-5 working days |
| Northern Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
| Republic of Ireland | Standard Delivery | £3.95 | Next working day on in-stock items ordered by 5pm |
Free delivery on orders over £30 (ex VAT).
* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.
Cancellations and Returns
Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions
- The Goods are in all original packaging
- The materials contain all original documentation (instructions, manuals, warranties or any other literature)
- Product is deemed by our returns department to be in a re-sellable condition
All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.
Faulty Products
- Products that are faulty must be returned within the manufacturer’s warranty period.
- The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
- Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.
Frequently Asked Questions
6193B is made to the Irish standard IS 201-4 and is designed to meet the Republic of Ireland wiring rules, which call for a full-size insulated earth. It is not a BS 6004 or BS 7211 cable. Before using it on a job designed to BS 7671, confirm with the designer or specifier that it is acceptable, and check the manufacturer's data for the figures you need.
There is no single figure. Current-carrying capacity depends on the installation method, whether the cable is in contact with thermal insulation, grouping with other circuits, ambient temperature and the protective device. Use the tables in BS 7671 Appendix 4 (or the equivalent ET 101 tables in the Republic of Ireland) with the relevant correction factors, and check voltage drop for the circuit length.
No. The manufacturer's datasheet describes it as a cable for general fixed installations and states that it cannot be used externally. It has no armour or mechanical protection, so it is not suitable for direct burial. For outdoor or underground runs, choose a cable designed for that purpose, such as a suitable armoured cable, and follow current wiring regulations.
No. Unlike standard 6242 twin and earth, which has a bare reduced-size protective conductor, 6193B has an insulated green/yellow earth core of the same size as the live and neutral. You can terminate it directly without green/yellow sleeving. Make sure every termination is tight and that the earth is connected at each accessory, as for any circuit protective conductor.
