QCT70-10
Copper Tube Lug 70mm 10mm Stud Unicrimp

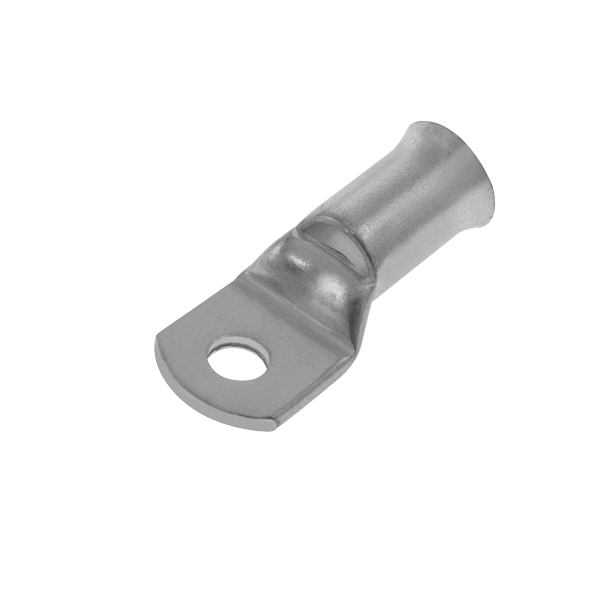

This is the Unicrimp Copper Tube Lug 70mm 10mm Stud.
Key Features:
- Contact plating: 5 to 8 microns
- Flared entry: Yes
- Conductivity: 97% IACS
- Inspection window: Yes
- Fixing type: Suitable for crimp or solder
- Working temperature: <180°C
- Material: Tin Plated Copper Tube
- Standards: ANSI/UL 486A-486B, CAN/CSA-C22.2 No. 65, ANSI/UL 486C, CSA-C22.2 No. 188, Tensile performance requirements to IEC 61238-1-1: 2018
Product Information
The Unicrimp Copper Tube Lug 70mm with 10mm stud hole is made from high-quality electro-tinned copper, offering excellent conductivity and corrosion resistance. Double annealed for added flexibility and strength, it performs reliably in temperatures up to 180°C. When using flexible fine-strand or welding cable, selecting the next larger terminal size is recommended for the best fit.
Product Details
| Brand | Unicrimp |
|---|---|
| Cable Size | 70mm |
| Stud Size | 10mm |
