T06TTG12

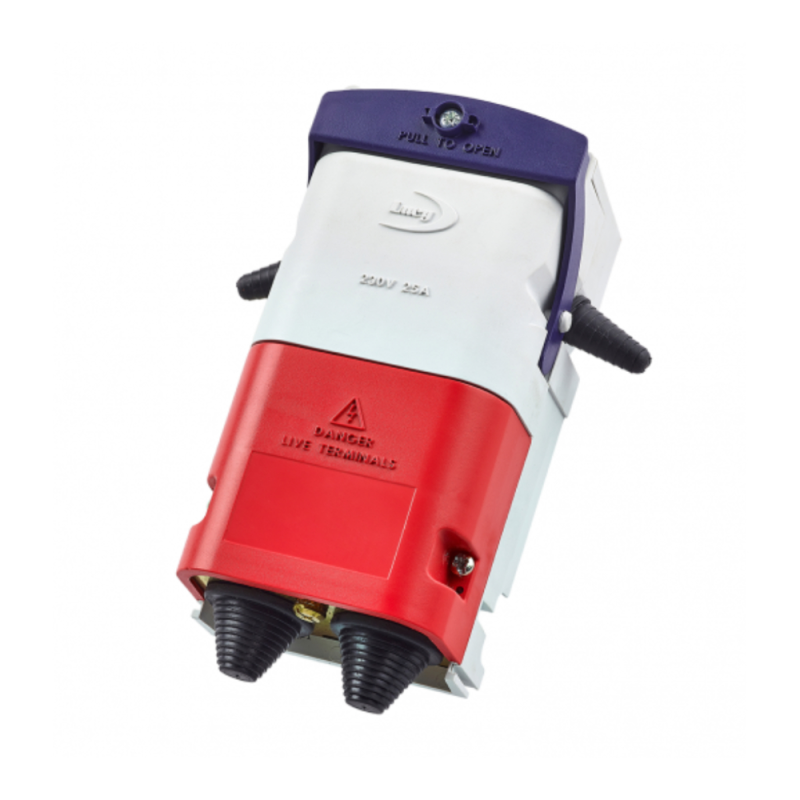

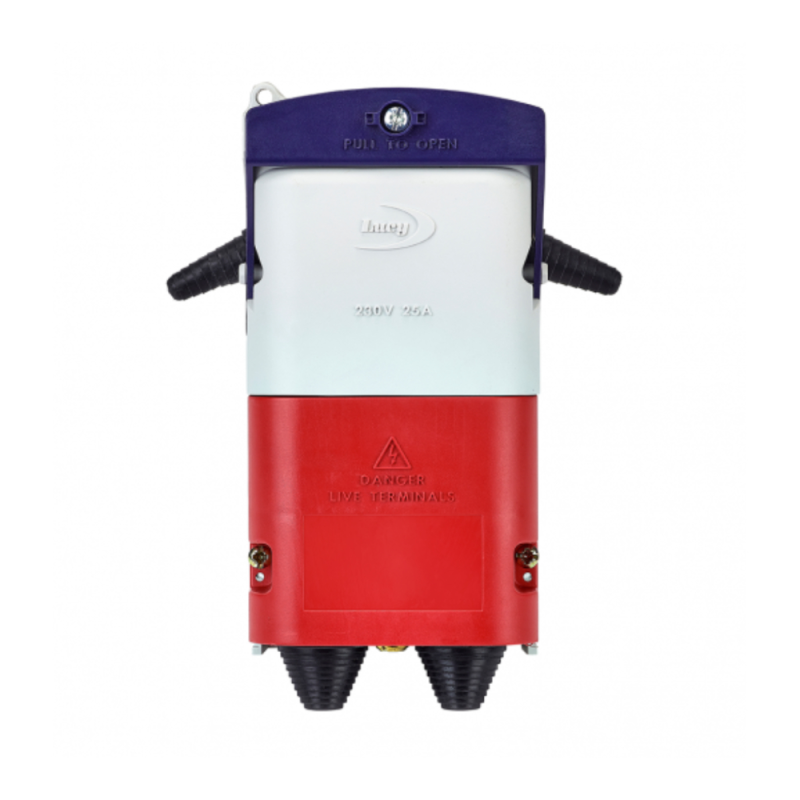

Titan Single Fuse Cut Out with Brass Plate 2 x 20mm Holes Lucy Zodion
This is the Titan Single Fuse Cut Out with Brass Plate 2 x 20mm Holes from Lucy Zodion. Lucy Zodion's Titan range of fuse cut-outs boasts high-quality engineered thermoplastics, which make the Titan range ideal for withstanding heavy use in demanding locations.
Key Features:
- Colum head: double pole
- Fuse way: single phase
- Dimensions: Height: 150mm, Width: 81mm, Depth: 65mm
- 2 x cable entry
- Isolator rating: IP43
- Gland plate: brass plate with 2 x 20mm holes
- Block: earth block
- Grommets: 2 x 20mm & earth lead

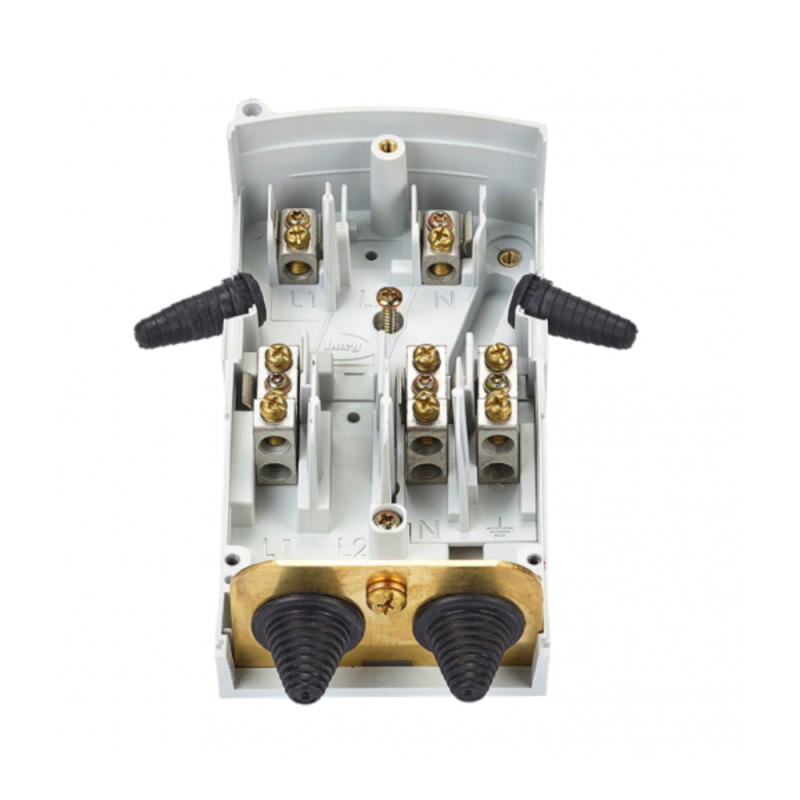

- Detachable terminal block in extension trough allows termination of heavy-duty cables
- Electroplated brass terminal blocks suited for conductors up to 25mm2
- Stud and lug connections enabled
- Serrated bores in the terminals to ensure good contact with all conductor types
- Red terminal block cover for safe installations
- Padlock and sealing wire options provided
- Captive screw-on cam lever included
- Terminal blocks for 1 to 3 conductors
Product Information
This Titan single fuse cut out is designed and tested in accordance with BS 7654: 1997 and IEC/EN 60947-Part 1 and accepts fuses to IEC 269-1 and BS 88 Part 1, AC16 tag type.
Product Details
| Brand | Lucy Zodion |
|---|
