If you are shopping for an energy-efficient smart thermostat, the right heating control decisions come down to three things: thermostat type, zoning approach, and a retrofit plan that fits the building, the users, and the installation window. This smart thermostat buyer's guide serves electricians, facilities managers, and specifiers who want comfort, compliance-ready control, and lower running costs without overheating, plus a clearer way to compare energy savings smart thermostat online UK options.

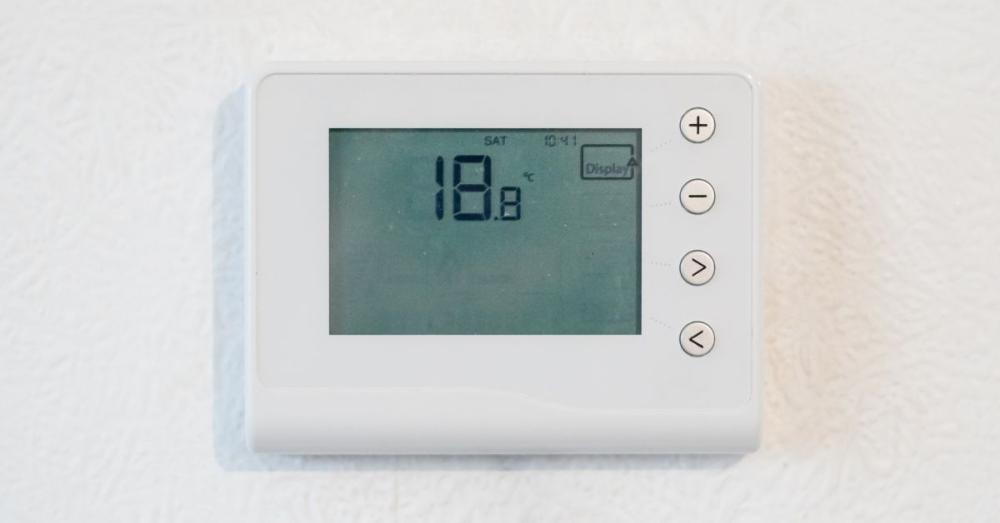

Choosing an Energy-Efficient Smart Thermostat: Features That Matter
When choosing an energy-efficient smart thermostat, prioritise how the control strategy matches the site’s occupancy and heat-up behaviour.
Thermostat Types at A Glance
- Manual: simple set-and-forget, best where routines rarely change.
- Programmable: good for steady schedules, cleaner handover for tenants.
- WiFi: remote tweaks, useful for out-of-hours callouts and quick overrides.
- Smart (learning/automation): ideal if you are looking at the best smart thermostat for home automation, especially when paired with geofencing and smart home routines.
Must-Have Buying Criteria
Focus on the boring stuff first, because it saves the most pain later:
- Compatibility: what you are switching (boiler, underfloor heating, immersion, panel heaters), and the load rating.
- Sensor accuracy: a “smart” stat is only as smart as its temperature reading.
- Schedules: 7-day programming, boost, holiday mode, frost protection.
- Remote access: WiFi or local Bluetooth control, plus multi-user permissions for FM teams.
- Integration: voice assistants, automation platforms, and reporting, if you will actually use them.
If you are comparing energy savings smart thermostat online UK, prioritise solid control logic (schedules, compensation, feedback) over flashy dashboards.
Zoning and Multi-Room Control: Comfort Plus Cost Control
Zoning is where you often unlock the biggest comfort gains, and it can also make an energy-efficient electric heater setup feel far more premium.
What Zoning Means in Practice: Single-Zone Vs Multi-Zone Buildings
A single-zone building heats as one block. Multi-zone sites split heating by area, floor, or use case, so meeting rooms do not follow the same schedule as corridors.
Zoning Options: Multiple Thermostats, Room-By-Room Electric Control
- Multiple thermostats: dependable for clear, separated areas.
- Room-by-room electric control: often the simplest route when you are deploying smart panel heaters or looking at smart electric heaters for sale for targeted upgrades.
Where Zoning Delivers Fastest ROI
Zoning pays back quickly where occupancy is uneven:
- Meeting rooms and training spaces.
- Reception areas that need comfort spikes.
- Washrooms and corridors that only need background heat.
- Small offices with different working patterns.
Retrofit Planning Checklist: Before You Specify
Retrofit success is 70 per cent planning and 30 per cent product choice, especially when you are combining an energy-efficient smart thermostat with room controls.
Site Survey Essentials
Walk the building like an end user:
- Identify heat sources per space (radiators, UFH, immersion, panel heaters).
- Note room patterns (peaks, quiet periods, weekend use).
- Check connectivity realities, not assumptions, including 2.4GHz WiFi coverage.
Electrical and Install Considerations
Plan for real-world constraints:
- Cable routes and surface containment.
- Fused spurs and local isolation where required.
- Access windows, especially in occupied buildings.
Controls Setup Plan
Decide upfront:
- Setpoint policy (limits, frost protection, comfort bands)
- Who can override, and for how long
- A simple quick-start sheet for occupants, plus an FM settings record
If you are replacing heaters, keep your procurement clear: shortlist, validate loads, then buy smart electric heater online with matching controls and isolation accessories.
Source - Lowe's Home Improvement
Best Smart Thermostat for Home Automation - Top Picks from Meteor Electrical

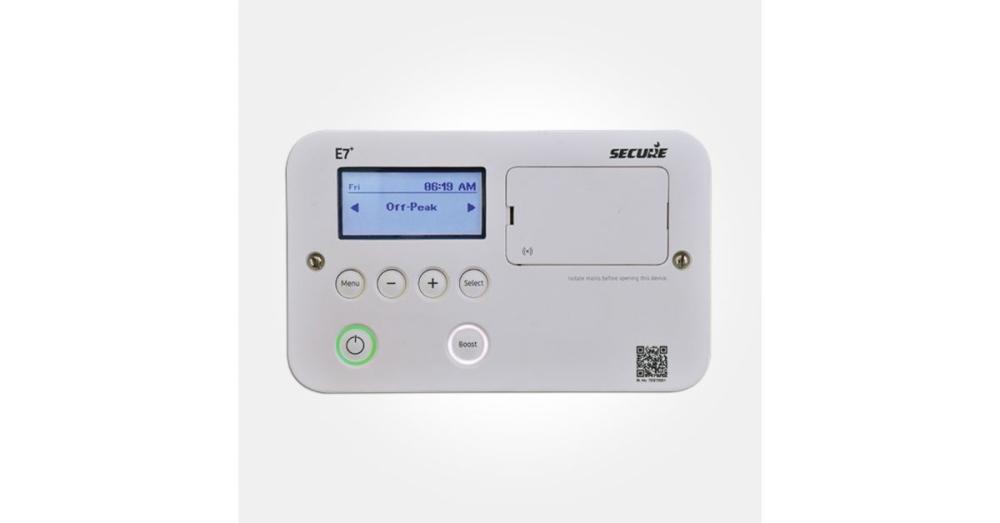

1. Smart Immersion Heater Control (Secure)
Built for modern tariffs and off-peak use, this immersion control offers app-enabled Bluetooth control without needing WiFi, with an option to upgrade to remote control later.
Key features:
- 13A 230V AC contact rating, suitable for immersion heaters up to 3kW.
- App enabled via Bluetooth (Android and iOS), no WiFi needed.
- Adaptor plate for easier retrofit, plus optional WiFi adaptor upgrade.
- 7-day programming with up to 48 time periods (with WiFi and dynamic tariffs).
- Manual Boost options (30 minutes, 1 hour, 2 hours).

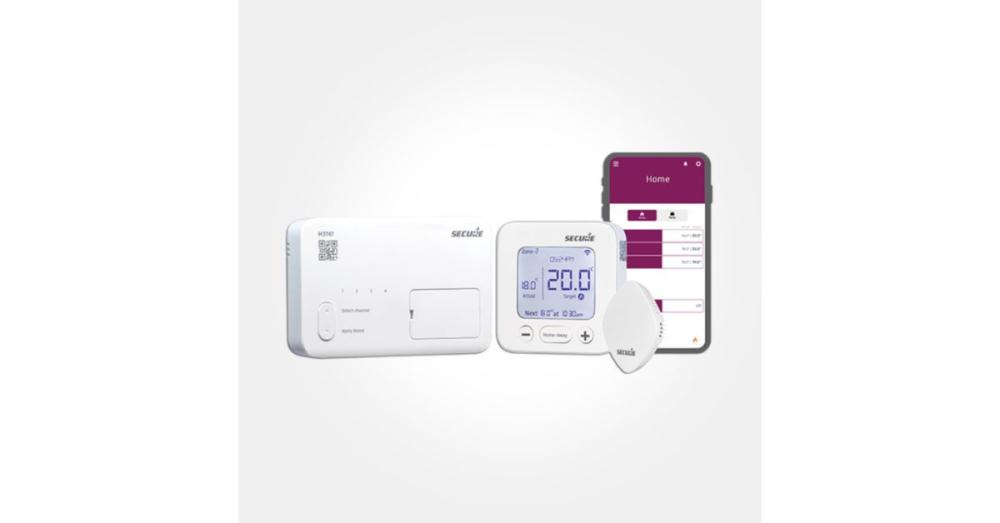

2. 4 Channel Receiver with Programmable Thermostat Display (Secure)
A flexible control option with local Bluetooth app control, plus load compensation features aimed at efficiency and comfort.
Key features:
- Local control without WiFi using Bluetooth, plus remote control with a WiFi adaptor.
- Load compensation for efficiency and comfort, and Boiler Plus compliance notes.
- Approx. 12-year battery life for the thermostat display (non-replaceable battery specification listed).
- Receiver supply 230/240V AC and listed relay input voltage ratings.

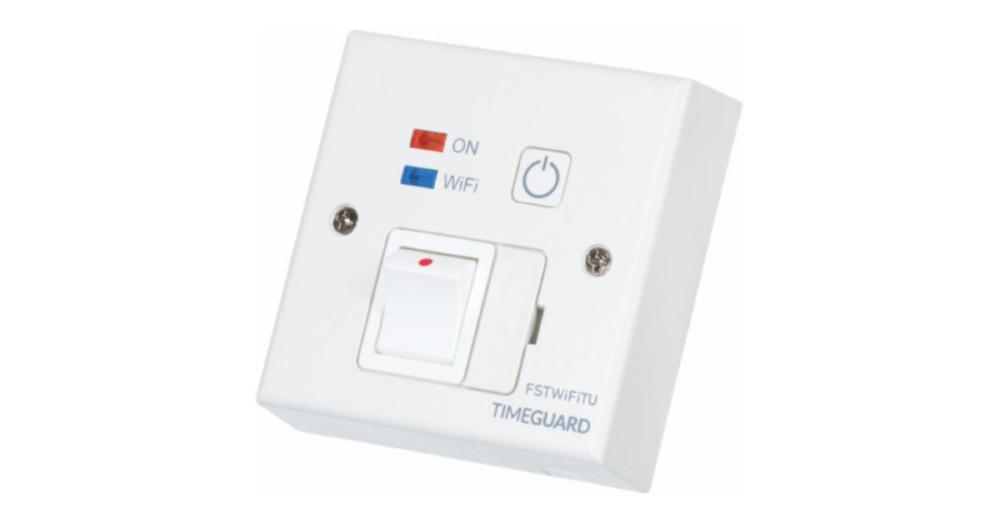

3. Wi-Fi Controlled Fused Spur (Tuya Edition) (Timeguard)
A neat way to add smart switching to connected loads using the Tuya app, with Boost and Countdown modes for practical day-to-day control.
Key features:
- Tuya app control (Android and iOS) with remote operation via WiFi and data connection.
- 24-hour and 7-day programme modes, plus Boost/Countdown.
- 230V AC, 2.4GHz WiFi (802.11 b/g/n), and IP20 rating.
- Automatic summer/winter time changeover.

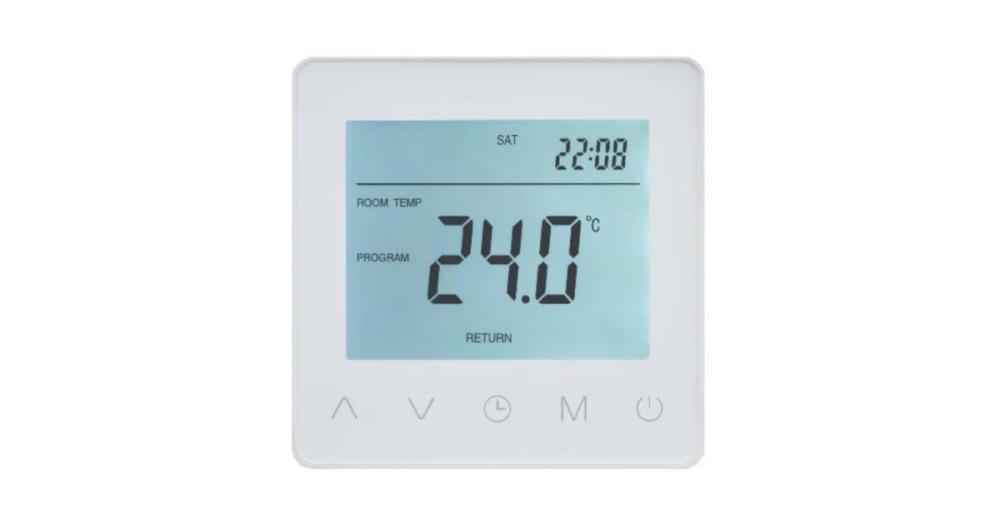

4. Heat My Home 16A Underfloor Heating Touch-Button Thermostat (Heatcom)
A user-friendly underfloor heating thermostat with a backlit display and sensor options for floor, room, or combined control.
Key features:
- 16A output and stated 3600W capability, with battery backup.
- Sensor settings: Floor, Room, or Room with Floor sensor as limiter.
- Lot 20 compliance statement and UKCA / RoHS standards listed.
- IP21 rating and Euro back box installation.

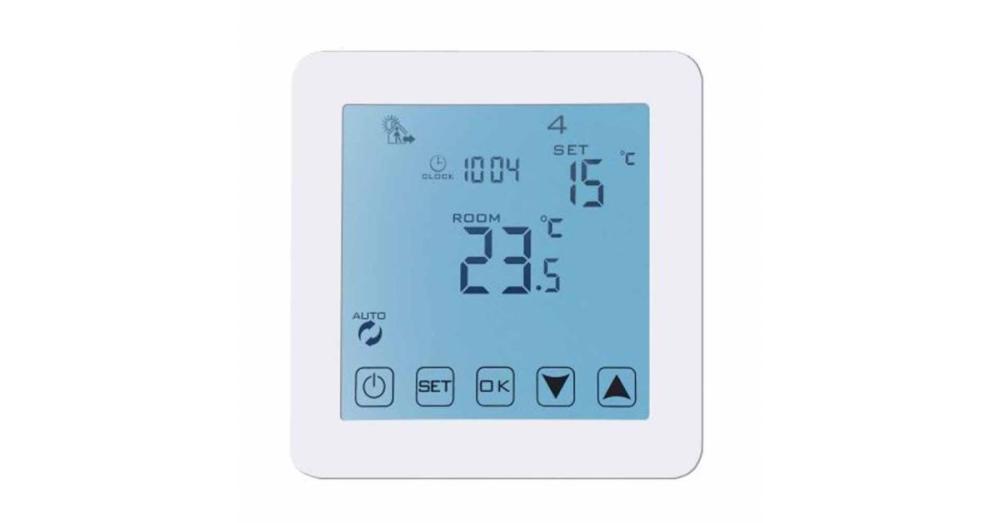

5. Room Thermostat & Underfloor Heating Stat (ATC)
A dual-purpose control that can run as a room thermostat or an electric underfloor heating thermostat, supplied with a floor probe.
Key features:
- Touch sensitive controls with 5°C to 35°C range.
- Switches 16A resistive load, with automatic timer and boost mode.
- Can be set to floor temperature measurement, with settings change to use as a room thermostat.
- Electrical specs list 220-240VAC and 50-60Hz.
Key Takeaways
- Start with compatibility and sensor placement, not app screenshots.
- Zoning wins where occupancy is uneven, or rooms serve different purposes.
- Plan permissions and override rules before commissioning day.
- Smart controls shine when schedules, boost, and reporting are actually used.
- Match an electric heater with room-by-room control where possible.
Conclusion
A great smart heating upgrade involves pairing the right control type, a sensible zoning plan, and a retrofit checklist that avoids last-minute surprises. When you are ready to compare specs and availability in one place, Meteor Electrical is a smart next step for controls and heating. Shop the best smart thermostat for home automation alongside compatible smart heating gear.
Check availability and specs, order now from Meteor Electrical.
FAQs
1. What’s the difference between a programmable thermostat and a smart thermostat?
A programmable thermostat follows schedules you set, while a smart thermostat can automate behaviour using learning, automation routines, and remote management.
2. How do I plan zoning in an existing building without major disruption?
Group spaces by use and occupancy first, then choose the lightest-touch method: additional stats, smart TRVs, or room-by-room electric control.
3. Where should a thermostat be installed for accurate temperature control?
Place it where air circulates normally and where occupants feel comfort, away from direct sun, draughts, or heat sources.
4. Are smart electric heaters suitable for facilities management (controls, scheduling, reporting)?
Yes, if you standardise schedules, lock down permissions, and choose models that support central visibility and consistent setpoint policies.
5. What should I check to ensure compatibility before ordering thermostats/heaters?
Confirm supply and load ratings, switching method, mounting/back box needs, network constraints, and whether you need local isolation and fused protection.
