Industrial Plugs and Sockets UK: 2025 Buyer’s Guide That Boosts Safety, Uptime and Compliance

The right choice of industrial plugs and sockets UK safeguards uptime, compliance, and on-site safety across plants, workshops, and temporary power systems in 2025, ensuring operations keep moving without electrical interruptions. From welders to conveyors and portable tools, reliable connections ensure safe power delivery in demanding environments without avoidable downtime or compliance risks, especially where exposure to dust, moisture, or heavy handling is routine.

An informed selection also simplifies maintenance, reduces misconnection risk, and supports long-term asset reliability where three-phase and single-phase systems coexist.

Types and Key Specs for Heavy-Duty Performance

Selecting heavy duty plugs and sockets begins with matching the environment and load profile to the right construction and specification for long-term reliability, especially in harsh or washdown conditions. Common build variations include waterproof, dustproof, and chemical-resistant designs to suit wet zones, abrasive sites, or process plants handling caustic media with elevated IP protection.

• Waterproof: For washdown areas, outdoor use, and splash-prone zones where ingress protection such as IP66/67 is essential.
• Dustproof: For fabrication bays, milling lines, and construction where particulates can compromise contacts over repeated mating cycles.
• Chemical-resistant: For labs and manufacturing where solvents and aggressive agents demand seals and materials that retain integrity.

Key specifications to evaluate:

• Voltage and current: Ensure the connector’s rating meet equipment demand with margin for inrush and duty cycle variability.
• Materials and housings: Tough polymer or alloy bodies, impact resistance, and sealing systems that maintain IP performance in service.
• Mechanical security: Positive locking, keyed alignment, and two-screw strain relief to prevent accidental disconnections and conductor fatigue.

In mixed fleets, standardise connector families by colour and keying to cut misconnection risk and simplify spares, aligning single-phase blue 230 V and three-phase red 400 V per IEC 60309 conventions across the site.

Ratings, Colour Codes and UK Compliance Essentials

Three pillars guide compliant selection in the UK: IP ingress protection, IEC/EN standards, and wiring regulation alignment for installation contexts across industrial and temporary setups.

• IP ratings: Typical industrial variants include IP44 for splash resistance and IP67 for temporary immersion and hose-down; IP66/IP67 combinations address jetting and immersion in food, marine, and outdoor applications.
• IEC 60309: Defines industrial connectors up to 1000 V and 800 A, with keyed, colour-coded bodies to prevent cross-voltage mating and ensure safe interoperability across equipment families.
• UK practice: Align with IEC/EN 60309 and BS EN 60529 (IP testing), and install to UK wiring rules for safe integration in domestic, commercial, and industrial systems where relevant.

For frequent washdowns, specify interlocked outlets at IP67 and enforce “no live decoupling” with mechanical interlocks to reduce arcing and extend connector life in wet environments.

Buy Switches and Sockets Online: Curated 2025 Product Picks

These highlighted products align with modern industrial demands for protection, safety, and ease of installation, reflecting recognised testing frameworks and ingress protection needs in UK applications where reliability is critical.

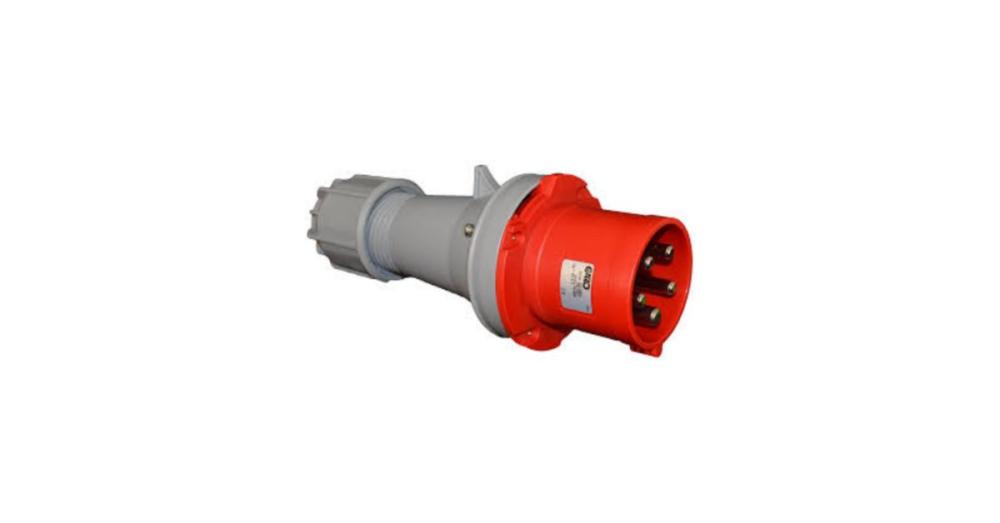

a) 63 Amp IP44 5 Pin 400 V Plug Top, GARO

• Built and tested to international connector standards, with ingress protection suitable for splash-prone environments and robust temperature and chemical resistance for tough shifts.
• Flexible cable entry and dual-screw strain relief promote reliable cord anchoring and reduced conductor fatigue under movement.

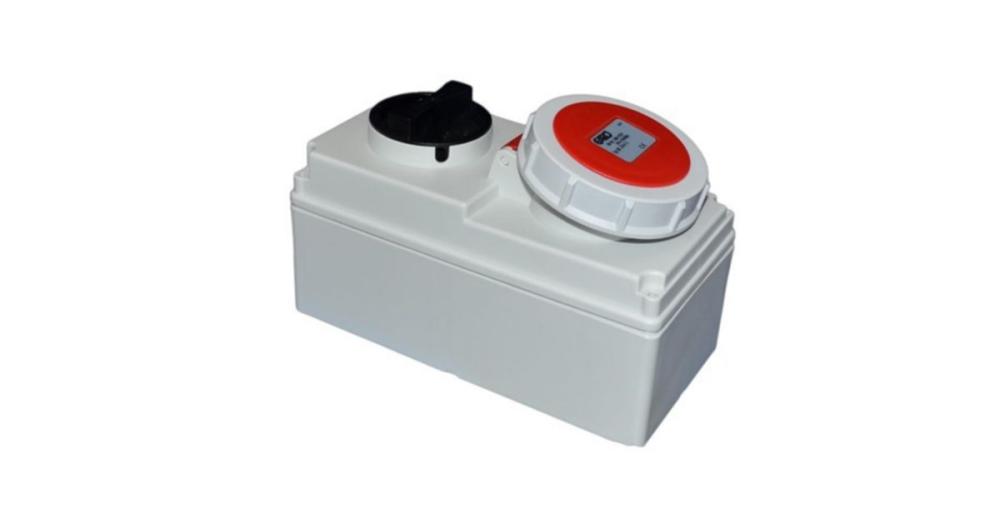

b) 16 Amp IP67 5 Pin 400 V Interlocked Socket, GARO

• Interlocked operation reduces risks of live disconnection and enhances safety for three-phase loads; IP67 sealing suits hose-down and wet-area deployment in demanding zones.
• Certified to recognised international standards for fit, safety, and environmental performance in industrial sites across the UK.

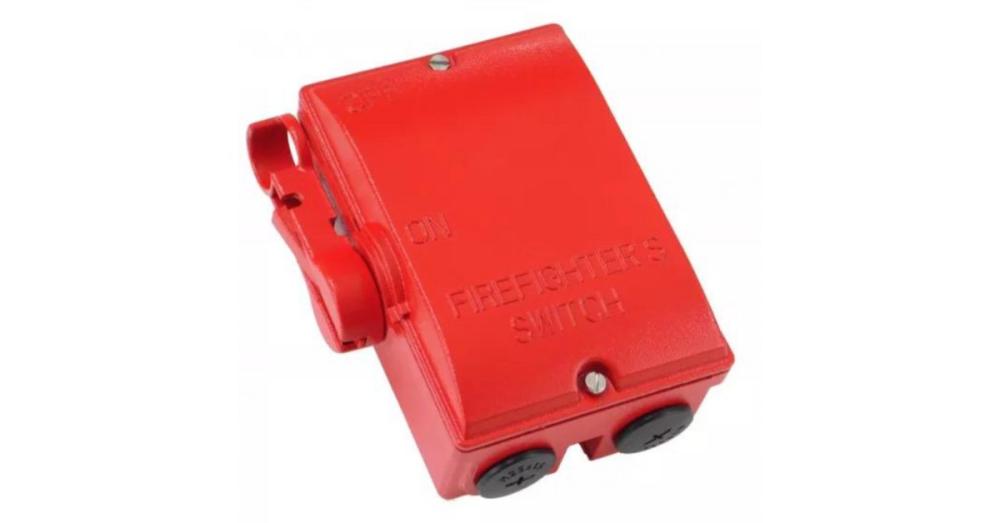

c) 40 A 3 Pole + Neutral Enclosed Firefighters Switch IP65 Aluminium, Europa

• Epoxy powder-coated die-cast aluminium housing delivers robust protection, with padlockable OFF setting for secure isolation and safer intervention routines.
• Lid removal permitted only in OFF state, supporting controlled access and safer maintenance procedures in critical installations and high-risk areas.

Industrial connector lines frequently include IP68/IP69 variants for extended immersion and high-pressure washdown; verify per product datasheets and IP test standards for exact claims before specification in hygiene-critical settings.

Buying Checklist: Choosing Heavy Duty Plugs and Sockets That Last

Selecting heavy duty plugs and sockets is about matching the connector to the task and environment while ensuring longevity and safety with proven certifications.

• Application and duty: Motor starts, welders, and portable plant create higher inrush and mechanical stress; upsize ratings or choose interlocked solutions where frequent connect/disconnect occurs.
• Environment: Heat, dust, oils, or water demand elevated IP protection; IP67 is often prudent for construction, marine, and food production contexts with routine cleaning.
• Durability: Reinforced housings, robust latching, strain relief, and gaskets that maintain seals after repeated cycles underpin long service life.
• Safety features: Interlocks to prevent live withdrawal, lockable covers, and keyed earth-pin systems that prevent cross-voltage mating are essential controls.
• Standards and compatibility: Match pin configurations, key positions, and colour codes to system voltages; ensure compliance to avoid rework and downtime.

Implement colour-coded zone mapping on panels and drops to mirror IEC 60309 colours on site drawings, cutting commissioning time and errors during shutdowns and temporary power setups.

Source- ANDELI_Welder

Conclusion

For safe, efficient power distribution, industrial plugs and sockets UK should be specified by load, environment, and compliance with IEC/EN testing and IP protection standards, enabling resilient operation in 2025’s demanding industrial contexts. When the goal is fewer interruptions and safer connections, prioritise heavy duty plugs and sockets tested to recognised frameworks and matched to real-world duty conditions in plant and field deployments.

Meteor Electrical is a trusted electrical sockets and switches supplier offering next-day fulfilment across Northern Ireland and UK. Buy switches and sockets online with confidence at Meteor Electrical.

FAQs

1. What’s different about industrial plugs and sockets compared to domestic ones?

Industrial connectors handle higher voltages and currents, tolerate frequent mating cycles, and include keyed alignment, locking, and sealing to protect against harsh conditions not faced by domestic sockets.

2. How should IP ratings be chosen for heavy duty plugs and sockets?

Base selection on exposure: IP44 for splashes, IP66/67 for jets and immersion, considering outdoor use, washdowns, and dust levels to maintain safe operation.

3. Do IEC and BS/EN certifications really matter in the UK?

Yes, they verify safety, interchangeability, and environmental performance, supporting compliance and reducing risk across industrial installations and audits.
