Complete Guide to Running Twin & Earth Cable: Safe Zones, Clipping, Bending Radii, and Professional Terminations

A clean, compliant cable run is the absolute hallmark of a professional electrician. Poorly routed cable not only looks disorganised but poses severe safety hazards and risks failing regulatory inspections.

Twin and earth cables carry live and neutral with a CPC (earth). Because they form the backbone of almost every domestic and commercial fixed wiring installation, knowing how to handle them properly is a fundamental trade skill. This guide walks electricians and facilities managers through the essential techniques for routing twin & earth cable. From navigating BS 7671 safe zones and respecting bending radii to executing flawless, high-integrity terminations, we cover everything you need for a safe and professional finish.

While installing cables correctly is step one, protecting those circuits from overvoltage at the consumer unit is equally vital for commercial safety.

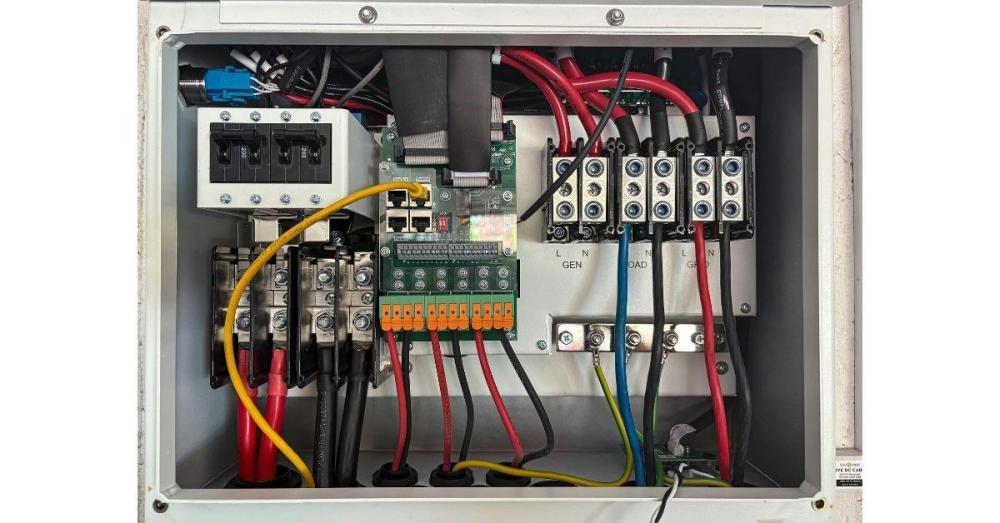

Navigating UK Wiring Safe Zones (BS 7671)

Understanding Horizontal and Vertical Zones

Routing cables strictly within prescribed safe zones is critical for regulatory compliance and long-term safety. Cables must run horizontally or vertically directly from an accessory, or within 150mm of corners and ceilings.

You must highlight the risks of diagonal or non-compliant routing. Deviating from these zones significantly increases the danger of cables being struck by drills or nails by future homeowners undertaking simple DIY tasks.

Concealed Cables and RCD Protection

Any twin & earth cable UK professionals bury in a wall at a depth of less than 50mm must be protected by an RCD (Residual Current Device).

• This vital regulation prevents fatal electric shocks in the event of an accidental strike.
• The protection applies unless the cable incorporates a properly earthed metallic covering or is enclosed in earthed metal conduit.
• Always ensure your consumer unit is equipped with the correct RCDs to meet this strict BS 7671 mandate.

Best Practices for Clipping and Cable Support

Proper Spacing for Cable Clips

Providing standard trade guidelines for clipping distances is essential to prevent unsightly sagging and reduce strain on the copper conductors. A reliable twin & earth cable installation relies on the following spacing rules:

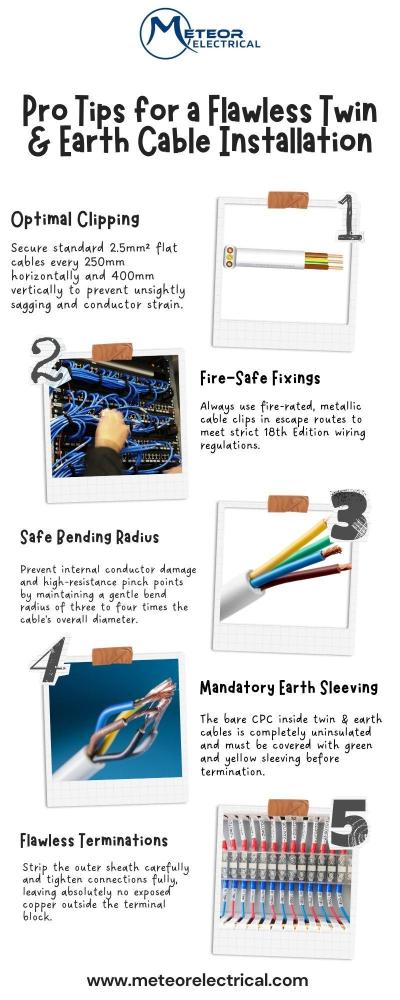

• Place clips every 250mm horizontally for standard 2.5mm² flat cables.
• Place clips every 400mm vertically to maintain a secure and flush run.

Flat Cable Orientation

Always advise your team on using the correct size clips designed specifically for the flat profile of these cables. This careful orientation ensures the cable sits completely flush against the joist or masonry without pinching the outer PVC sheath.

Fire Safety and Metallic Fixings

The 18th Edition wiring regulations require the use of fire-rated, metallic cable clips in escape routes. This critical rule prevents cables from prematurely collapsing and trapping occupants during a fire.

Mastering the Bending Radius: Preventing Conductor Damage

What is the Minimum Bending Radius?

One of the most important twin & earth cable installation best practices is respecting the physical limits of your materials. Flat cables should never be bent sharply at a 90-degree angle. The general rule is to maintain a bending radius of at least three to four times the cable's overall diameter.

The Dangers of Over-Bending

Forcing a sharp bend stretches the outer PVC sheathing and compromises the internal copper conductors.

• This physical stress creates high-resistance pinch points.
• These pinched sections can overheat dangerously under heavy electrical loads.
• Over time, this degrades the insulation and introduces a severe fire risk.

Did You Know - Consistently over-bending cables is a leading cause of localised overheating, which can silently degrade your entire electrical circuit over time?

Shaping Flat Cables

To achieve a flawless turn, apply professional tips on shaping the cable gently along its flat edge. Forcing it to bend along the thin edge causes aggressive twisting and extreme structural stress that will fail future inspections.

<iframe width="560" height="315" src="https://www.youtube.com/embed/tAxg4DK9ckM?si=GGeFza9qhodW8tk7" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

Source - eFIXX

Stripping and Terminations: Achieving a Flawless Finish

Managing the Bare Earth (CPC)

Installers must remember that the CPC in a standard flat cable is completely uninsulated. It is a strict regulatory requirement to slide green and yellow earth sleeving over the bare copper before terminating it into an accessory.

Perfecting the Strip

Removing the outer grey sheath requires precision and patience.

• Use the right stripping tools to slice the outer jacket safely.
• Ensure you do not accidentally nick the internal blue or brown insulation.
• Even a tiny nick can lead to creeping short circuits over the years.

Ensuring Tight, High-Integrity Terminations: Modern sizes and sheathing types are selected for the load, route, and installation method per BS 7671. With the correct wire selected, you must emphasise that terminations must be tightened fully to prevent arcing and high-resistance joints.

The best twin & earth cable installation dictate leaving absolutely no exposed copper outside the terminal block.
