CV8-PS

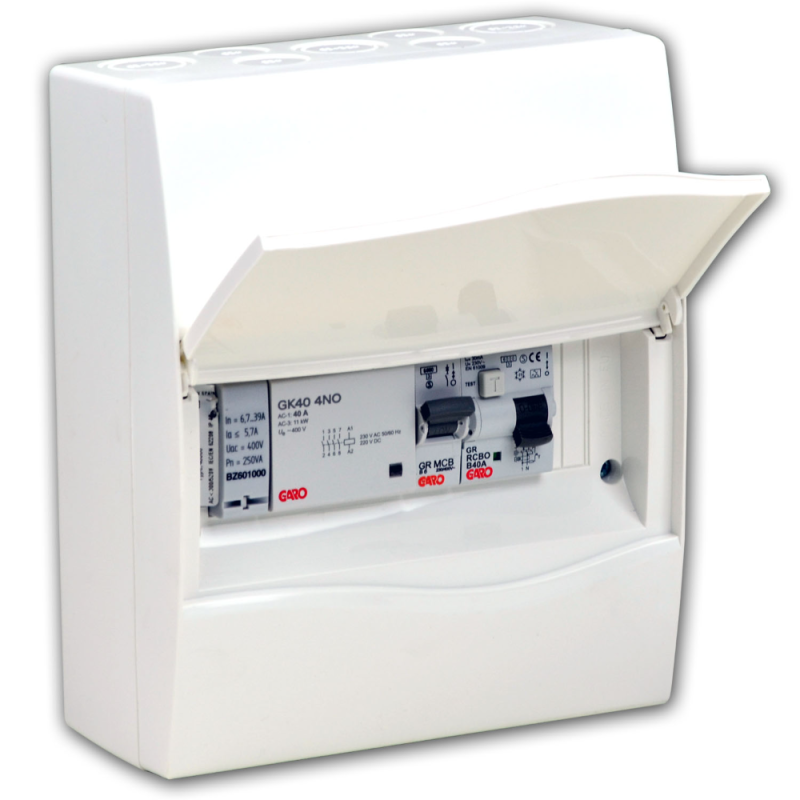

Priority Shower Board 6 Amp IP40 1 Row GARO

1 row shower priority board. Garo shower priority boards are designed so that when shower no.1 is in operation, shower no.2 will become de-energised and will not operate until shower no.1 is turned off.

Key Features:

  • Simple design
  • 63A Mains Switch
  • 1 x Type B MCB (6A)
  • 1 x Type B RCBO (40A)
  • 3 Blanks
  • Fixed Busbar
  • DIN Rail Supplied
  • Silent conductors are used
  • IP40 Rated
  • Multiple cable entries
  • Instructions and wiring diagrams are accessible
  • CE approved
  • BS EN60439 approved





In-Stock
£108.00
inc. VAT

Qualifies for Free Delivery

-
+
Order By 5pm For Next Day Delivery

Product Information

Our range of shower boards at Meteor Electrical will provide full control of your shower systems.

This 1 row shower priority board is part of the Garo Shower Boards Range, designed to facilitate the use of two electric showers which are being supplied from a domestic 63A single phase supply.

Both shower boards may continually use < 3kW of power each, however, when one exceeds this power use the Board will automatically cut the power to the second shower thus protecting the main supply fuse. When an electric shower is also installed, the showerboard is particularly effective at managing the load to an electric car.

Garo’s showerboard has three key features which include simplicity of usage, enhanced protection, and fully compliant with the 18th edition.

Product Details

More Information
Brand GARO
Weight (kg) 1.565000
IK Rating 08
Row(s) 1
Material Thermoplastic
Datasheet Download

Delivery Information

Location Shipping Method Shipping Charges Timescales
Mainland UK Standard Delivery £3.95 1-2 days from dispatched
Northern Ireland Standard Delivery £3.95 Next working day once dispatched
Republic of Ireland Standard Delivery £3.95 Next working day once dispatched

* Please note that delivery prices and services may vary depending on other items in your basket and your exact delivery postcode. Find out more about our delivery services.



Cancellations and Returns

Meteor Electrical Limited will accept returns up until 14 days after dispatch date on the conditions

  • The Goods are in all original packaging
  • The materials contain all original documentation (instructions, manuals, warranties or any other literature)
  • Product is deemed by our returns department to be in a re-sellable condition

All refunds are made to the same payment method used originally to place the order (e.g. VISA Card) - unless specifically requested otherwise.

Faulty Products

  • Products that are faulty must be returned within the manufacturer’s warranty period.
  • The complete product must be returned, unless previously agreed by Meteor Electrical in writing; incomplete items of parts may not be returned.
  • Products within the manufacturers specific warranty period will be repaired, replaced, or a refund given at the discretion of the Manufacture.

Frequently Asked Questions

How does a Priority Shower Board work?

Our range of priority boards from Garo is designed to provide control over loads within the home, particularly with EV chargers coming into play and heavy loads on cookers.

The priority shower board is created to provide priority use for the master over the second appliance.

Can two electric showers be on the same time with the Shower Priority Unit?

Using Garo’s showerboard, both showers can consume 3kW of electricity continuously. However, if one of the showers surpasses the power user, the shower consumer unit will immediately cut the power to the shower, giving the first shower priority. The purpose of the showerboard is to safeguard the main supply fuse.

What is the IP rating for Garo’s Priority Shower Board?

Garo’s priority shower board has an IP rating of 40. The shower priority board will be protected from tools and tiny wires larger than 1 millimetre in diameter but will not be protected against liquids.

What type of RCBO is included with Garo Priority Shower Board?

A Type B RCBO (40A) is included with the Garo Priority shower consumer unit.

What type of MCD is included with Garo Priority Shower Board?

A Type B MCB (6a) is included with the Garo Priority shower consumer unit.

What are the dimensions of the Garo Priority Shower Consumer unit?

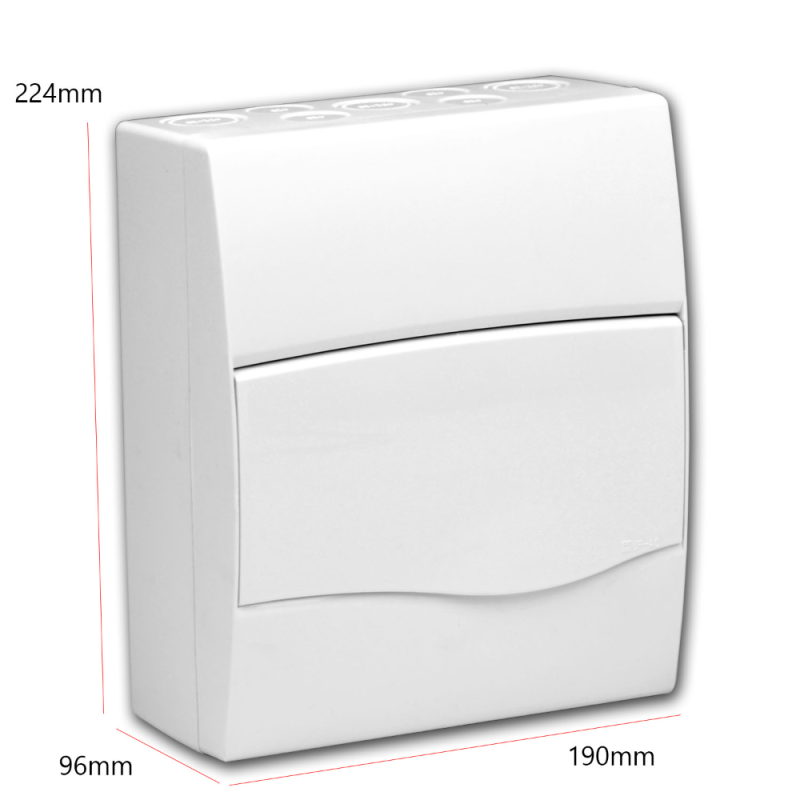

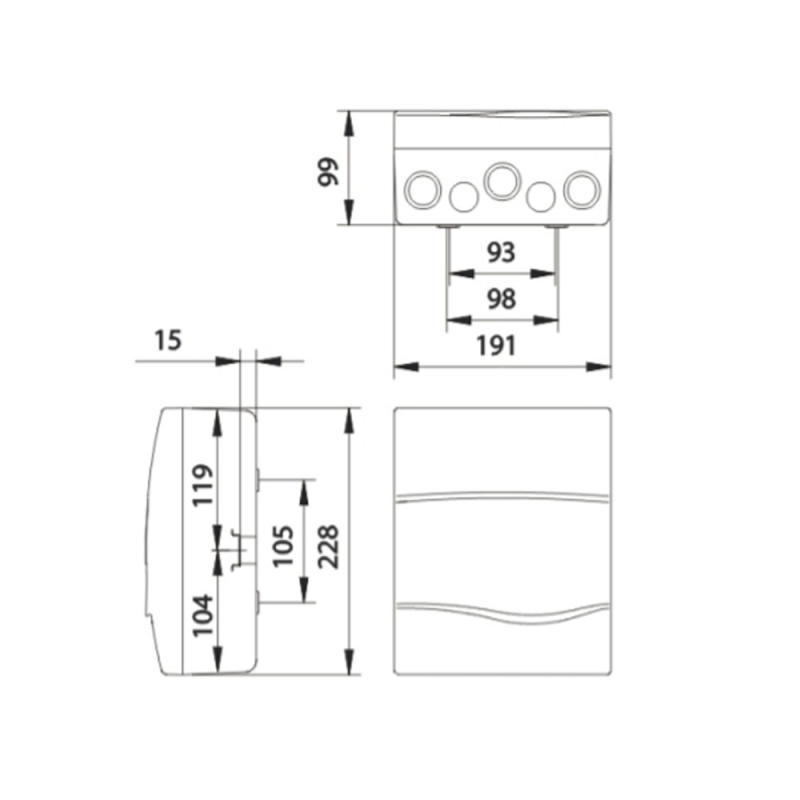

The Garo shower board unit is 191mm x 99mm. Please see the image to see the exact dimensions of the CV8-PS showerboard.
