Tight time slots, cramped cupboards and mixed-spec sites mean you cannot afford to fight with awkward consumer units on every job. Fast, modular boards that wire neatly, test quickly and suit both indoor work and the odd waterproof outdoor consumer unit are the ones that keep projects on schedule and callbacks low.
Below is a practical guide to choosing modular consumer units that actually save time on site, with real product suggestions you can plug straight into your next installation.

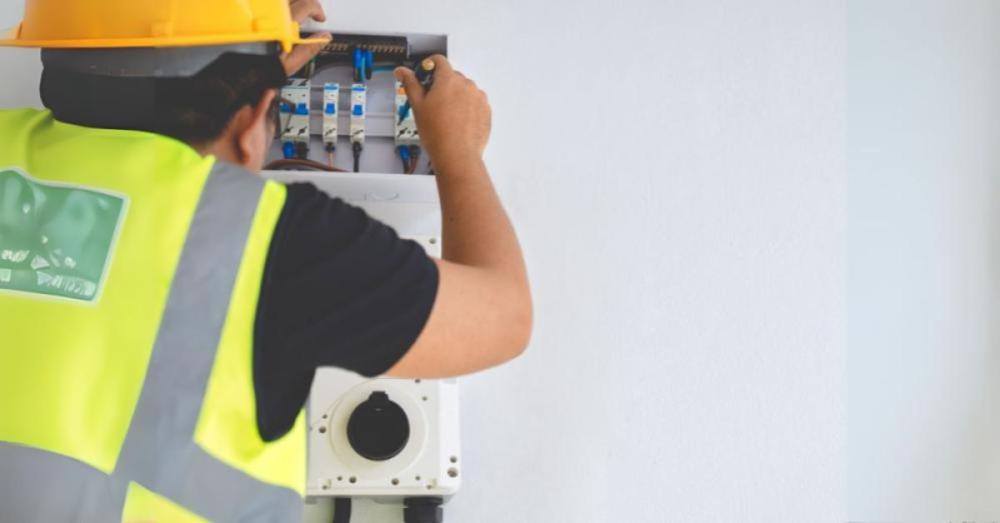

What Are Modular Consumer Units?
In simple terms, consumer units are the central switch and protection point for an installation, feeding and safeguarding every final circuit in the property. A modular consumer unit uses standard DIN-rail devices and a configurable layout so you can swap or add MCBs, RCBOs and surge devices without changing the entire board.
That modularity speeds up installation because you can standardise on a few enclosure sizes and then build up protection to suit each job, instead of carrying a different fixed configuration for every scenario. For facilities managers, it also means easier upgrades as buildings evolve, without ripping out the original consumer units.
Key Components Inside a Modern Consumer Unit
A modern board is more than a row of breakers. Typical key parts include:
- Main switch, which lets you safely isolate the whole installation for maintenance.
- MCBs that protect individual circuits against overload and short-circuit.
- RCBOs that combine RCD and MCB functions for both shock protection and overcurrent protection on a single circuit.
- Surge protection devices that help protect sensitive electronics from transient overvoltages.
- Busbar and enclosure, which physically and electrically tie the system together and influence how easy the unit is to wire and dress.
When these elements are laid out with raised DIN rail, clear labelling and generous wiring space, testing and fault-finding are quicker, and you spend less time wrestling with stiff conductors in a cramped can.
Choosing the Right Consumer Unit Type for Each Job

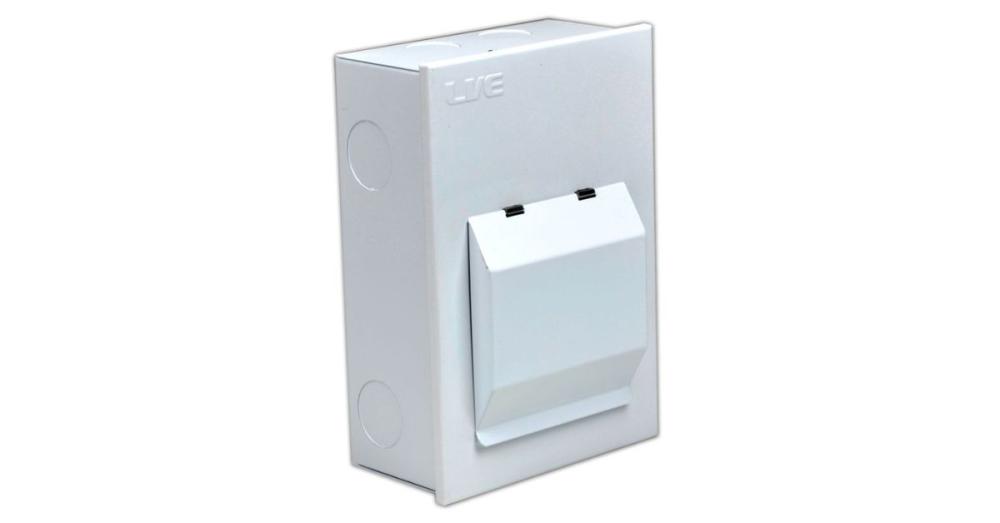

For a straightforward flat or small house, a compact metal split-load domestic consumer unit is often enough, provided there is some spare capacity. Larger homes, mixed-use buildings and small commercial sites benefit from modular boards with more ways and flexible neutral bars so you can separate critical and non-critical loads.
Facilities managers can save a lot of hassle by standardising on a small family of consumer units and distribution boards that cover most use cases. That makes spares, documentation and maintenance easier across multiple properties, and it avoids a patchwork of incompatible gear.

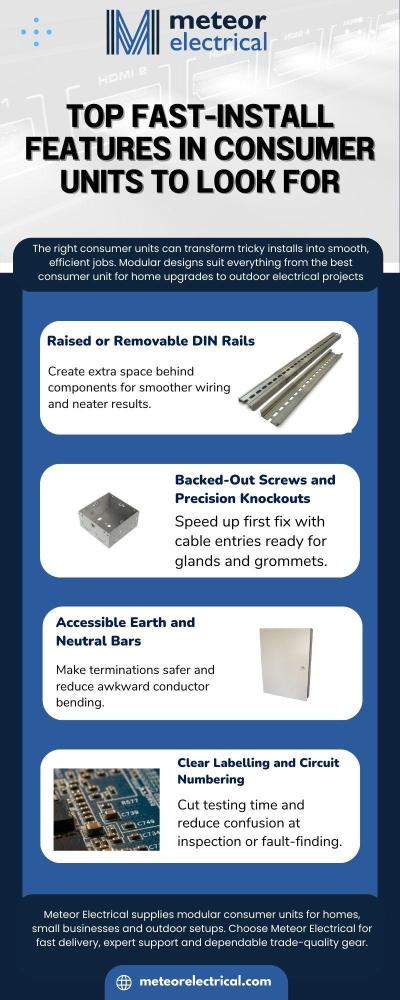

Fast-Install Features to Look for in Modular Consumer Units
When comparing consumer units, pay close attention to the details that actually change your day on site:
- Removable or raised DIN rail that gives you room behind for conductors.
- Backed-out screws and clearly sized knockouts that accept grommets and glands without reaming.
- Top-mounted or clearly accessible earth and neutral bars that reduce conductor bending.
- Logical, printed labelling and circuit numbering that cut down testing time.
These small touches reduce re-routing, panel rework and time spent crammed into a cupboard with a head torch.
Top Product Picks for Consumer Units at Meteor Electrical
1. Fast-Fit Metal Consumer Units for Domestic Jobs (2–18 way)

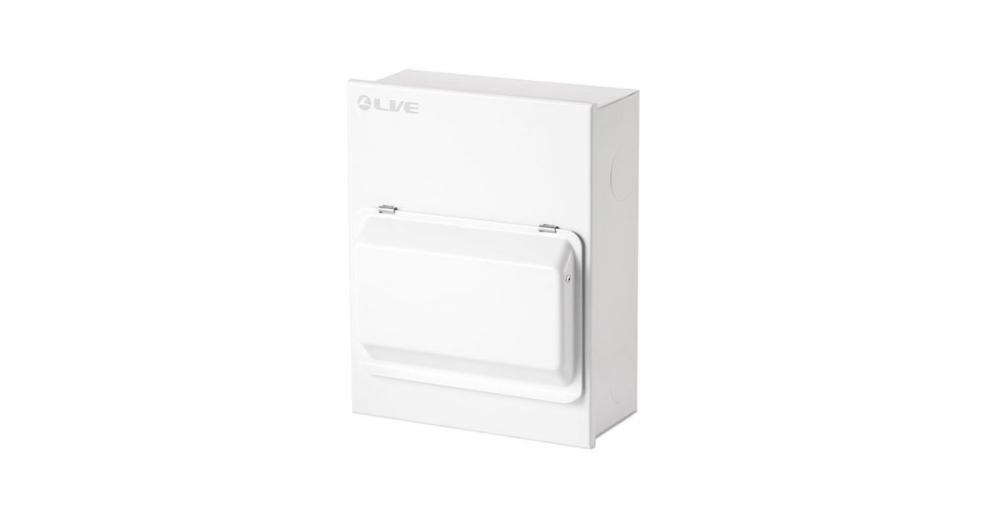

Live 10 Ways Metal Clad Consumer Unit 80A RCD (8 usable ways)
A tidy choice where you want a compact metal board that still offers room to grow. The enclosure has a clean, white finish and is designed to give you sensible wiring space for typical domestic circuits.
Key features:
- 10-way metal clad enclosure with 8 usable outgoing ways
- Multiple circular knockouts on top, sides and rear for flexible cable entry
- Raised DIN rail to help with neater cable routing
2. High-integrity and Split-load Modular Consumer Units for Light Commercial Usage

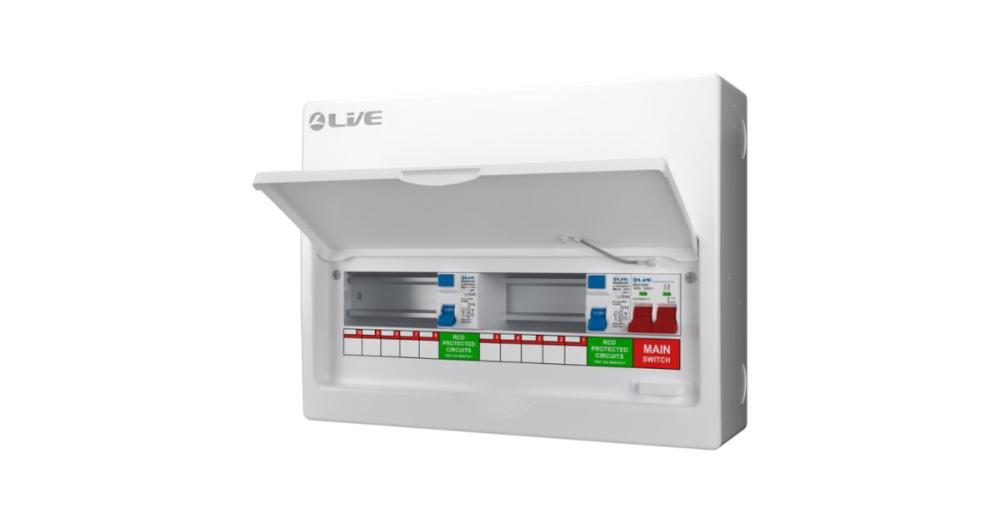

Live 16 Module Split Load c/w 100A Main Switch / 2 x 63A 30mA RCD suits small commercial, multi-unit residential or higher-spec domestic work where you want clear separation between circuits. The sturdy metal enclosure and split-load layout give a practical balance of safety and flexibility in a compact footprint.
Key features:
- 16-module capacity with split-load arrangement
- 100 A main switch plus twin 63 A RCDs for added protection
- Surface-mounted metal board for robust commercial-style installs
3. Large Modular Consumer Units for Light Commercial (22–75 way)

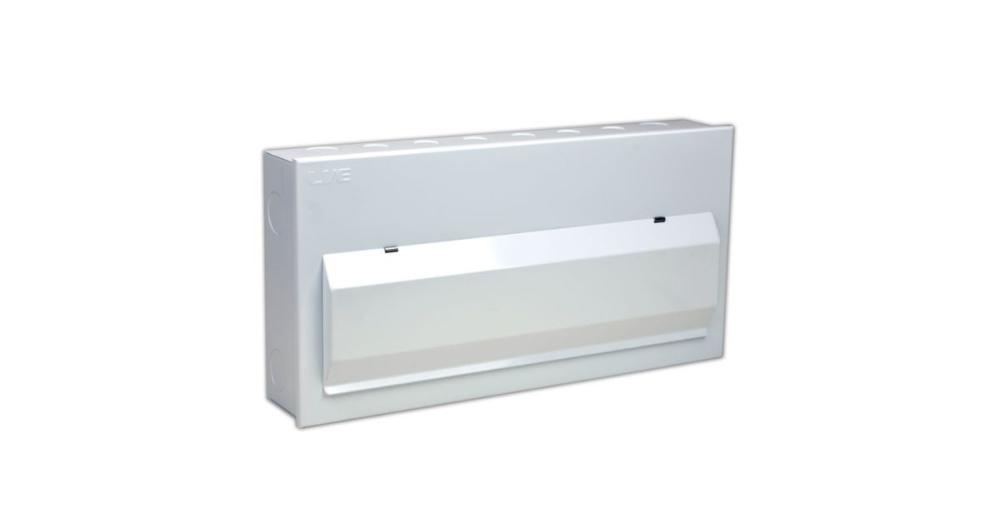

Live 22 Way Split Load c/w 100 Isolator / 2 x 80A RCD -For bigger jobs, this consumer unit gives you plenty of ways to keep installations fast while keeping wiring and segregation clear. It is ideal when replacing older fuseboards and bringing installations up to current wiring standards.
Key features:
- 22 outgoing ways with flexible neutral connections
- Generous wiring space to dress larger commercial cabling cleanly
- Raised DIN rail and IP4X-rated enclosure for improved safety and routing
4. Compact Modular Garage and Outdoor Consumer Units

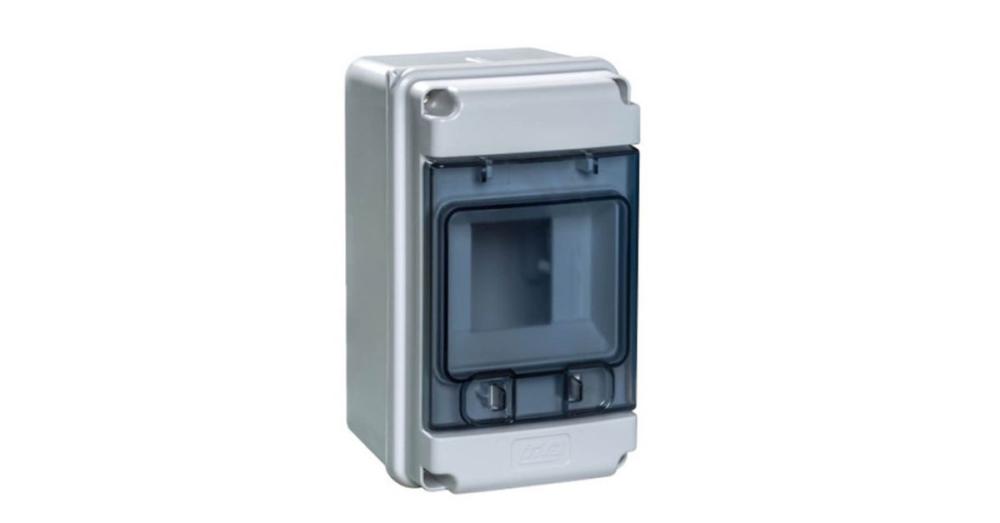

GARO 4 Modules IP65 Distribution Board
This is a great option if you need to buy outdoor consumer unit online. It uses robust thermoplastic materials and offers a neat 4-module rail that suits small garage, shed or external loads.
Key features:
- IP65 enclosure with IK08 impact rating for outdoor environments
- Transparent window for quick visual checks without opening the door
- Single 4-module DIN rail, ideal for a handful of MCBs or an RCBO set
Shop Now at Meteor Electrical
5. Multi-row Modular Boards for Future Expansion

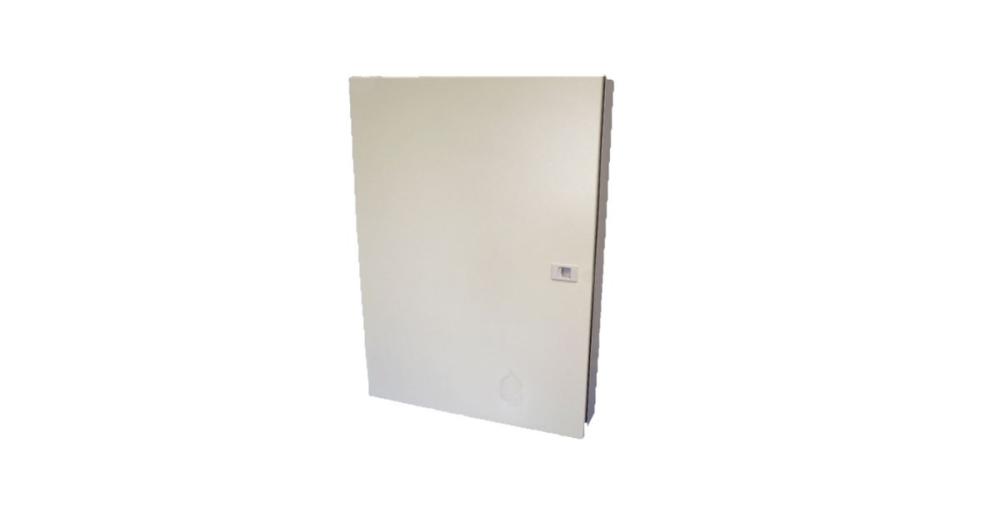

Plymouth 72 Module 4 Row Metal IP54 Enclosure
For projects that will grow over time, this consumer unit provides serious headroom. With four rows and 72 modules, it is well suited to multi-tenant, light industrial or complex commercial sites that need staged fit-outs.
Key features:
- 4-row, 72-module metal enclosure with pre-fitted DIN rails, earth and neutral bars
- IP54 rating for protection against dust and splashes
- M20 and M40 knockouts top and bottom to handle varied cable sizes
Professional Installation Advice for Faster Consumer Unit Installs
Best practices electricians swear by include:
- Choose boards with plenty of wiring room so you are not cramming in conductors.
- Look for backed-out terminals and clear, punch-out knockouts that fit standard glands.
- Standardise on RCBO boards where budgets allow to simplify fault-finding.
- Leave spare ways and a documented schedule so future additions are painless.
- Use consistent cable dressing patterns so any electrician can follow your work later.
Source - N Bundy Electrical
Conclusion - Choose Smarter, Install Faster with Meteor Electrical
Choosing modular consumer units with installer-friendly features and the right IP and protection options can dramatically shorten install times, reduce nuisance tripping and keep both clients and tenants happier. Whether you are searching for the best consumer unit for home or specifying a waterproof outdoor consumer unit for EV or garden loads, a bit of thought up front pays you back on every callout.
Meteor Electrical offers a broad range of consumer units, from compact domestic boards to large commercial enclosures and outdoor-ready options, offering competitive trade-friendly pricing, fast delivery and expert advice.
Browse the Meteor Electrical consumer units range today, spec your next project with confidence and turn more of your installs into quick, hassle-free wins.
FAQs
1. What is the difference between a standard consumer unit and a modular consumer unit?
A standard board has a fairly fixed layout, while a modular consumer unit uses DIN-rail devices and spare capacity so you can tailor protection and expand without changing the enclosure.
2. When should I use a waterproof outdoor consumer unit?
Use one whenever circuits or accessories are exposed to weather or damp, for example external sockets, EV chargers, sheds, pumps or garden lighting.
3. Are RCBO consumer units really worth it for smaller jobs?
Yes in many cases, because RCBOs isolate individual circuits when faults occur, which cuts nuisance tripping and speeds up fault-finding in busy homes and rentals.
4. How do I future-proof a new consumer unit installation?
Allow spare ways, choose a board with good wiring space, add surge protection where sensible and keep circuit schedules accurate so later additions are straightforward.
5. What should a facilities manager standardise on across multiple sites?
Standardise on a small set of consumer units, RCBO types and surge devices, plus consistent documentation and labelling, so maintenance and spares are simple across the estate.
