MCBGRB306
6A MCB Type B TP 6kA GARO

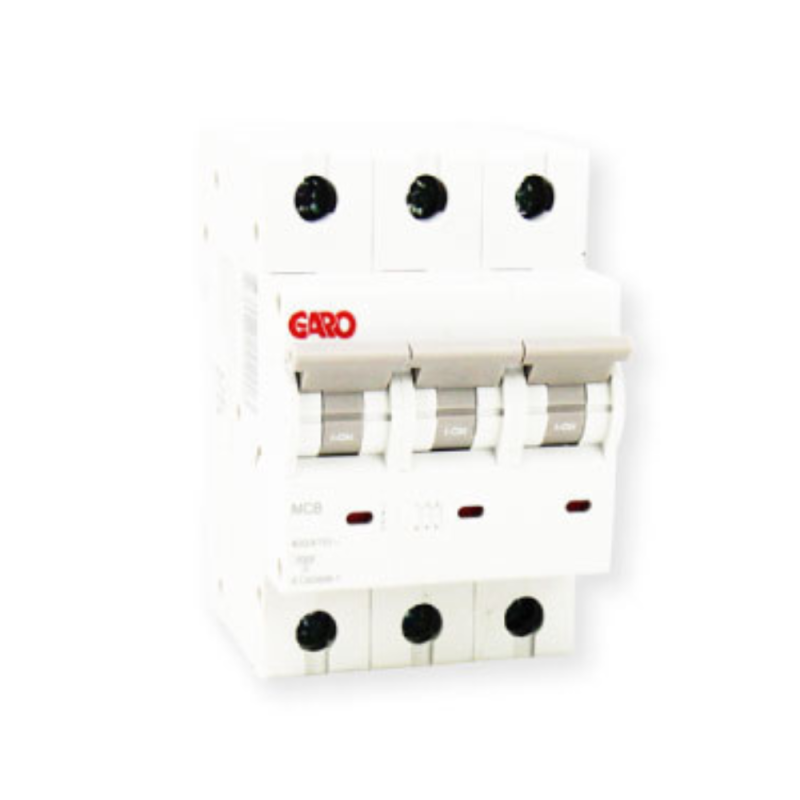

This is the GARO 6A MCB Type B TP 6kA.
Key Features:
- Rated current: 6 – 63A
- Rated voltage: 230/400 V AC
- Frequency: 50/60 Hz
- Rated short-circuit capacity: 6 kA
- Tripping characteristic: B
- Shock resistance: 30g, min. 2 shocks, t = 13 mins
- Back-up fuse: 100A gG
- Degree of protection: IP20
- Terminals: 1–25 mm², max 2.5 Nm
- Built-in width: 18 mm (per pole)
- Height: 82 mm
- Depth: 75 mm
- Net weight: 0.33 kg
- Ambient temperature: -25°C to +55°C
- Storage temperature: -35°C to +55°C
- Overvoltage category: III
- Sealing possibility: Yes
- Electrical endurance (operating cycles): 10,000
- Mechanical endurance (operating cycles): 20,000
- Mounting: On DIN rail (EN 60715)
- Standards: EN 60898, IEC 60898
Product Information
The GARO 6A MCB Type B Triple Pole 6kA is a reliable and compact circuit protection solution designed for residential, commercial, and industrial applications. With a Type B tripping curve, it ensures fast disconnection under overload and short-circuit conditions, offering enhanced safety for sensitive equipment and general-purpose circuits.
Product Details
| Brand | GARO |
|---|---|
| IP Rating | IP20 |
| Characteristic | B |
| Short Circuit Rating | 6KA |
