Stuffy bathrooms, fogged‑up mirrors, and lingering dampness are more than just nuisances, they’re signs your toilet extractor fan (or lack of one) needs attention. Whether you’re renovating, building, or just upgrading, the right fan can banish humidity, odour, and mould for good. This practical, expert-backed guide covers fan types, bathroom fan IP rating guide, controls, and installation, delivering the essentials you need for fresher, healthier air at home.

For even more energy-saving tips, check out the Energy Saving Trust, and for safety standards, see Electrical Safety First.

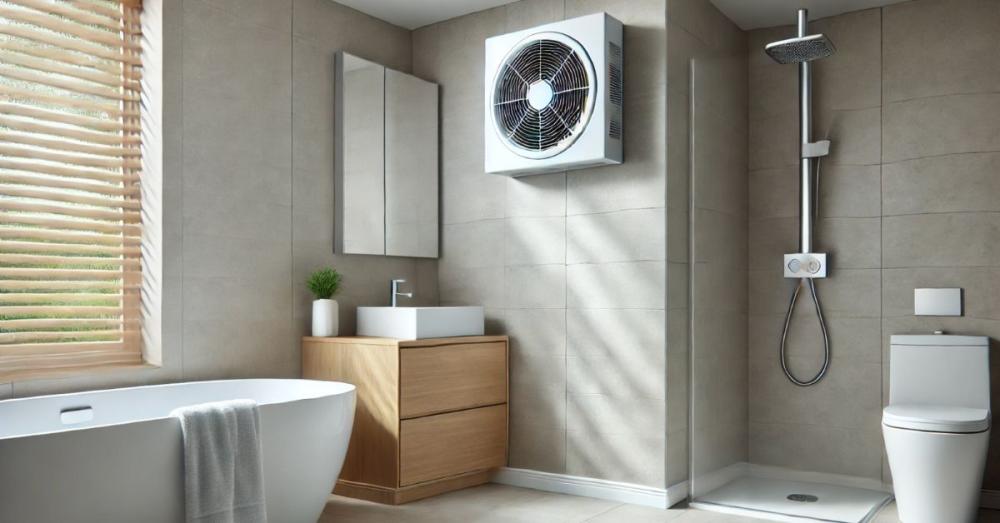

Why You Need a Toilet Extractor Fan

A well‑installed toilet extractor fan is a bathroom MVP. It whisks away steam, moisture, and odours, stopping damp walls, peeling paint, and unhealthy mould in their tracks. Without good extraction, you risk more than just condensation, think possible long-term damage and higher repair bills. Modern extractor fans are energy-efficient, quiet, and packed with smart features like run-on timers and humidity sensors, making them a must-have for every home.

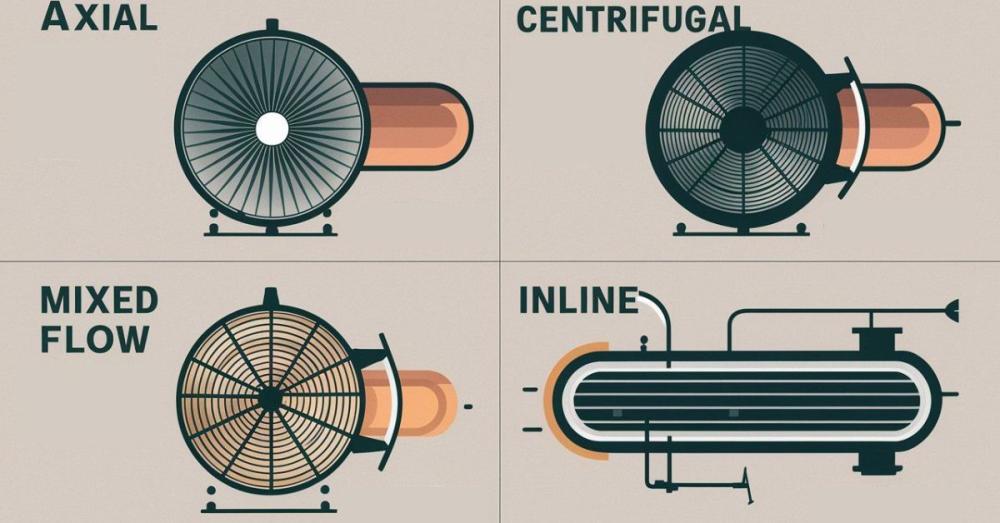

Types of Extractor Fans

Choosing the right fan depends on your bathroom’s layout, needs, and ducting. Here’s a quick rundown of popular types:

• Axial Fans: Best for small bathrooms with a short, straight route to the outside. Simple, efficient, and economical.
• Centrifugal Fans: Powerful enough for longer duct runs, ideal if your bathroom is far from an outside wall. Great for inline extractor fan for long duct runs. See practical advice at Homebuilding & Renovating.
• Mixed Flow Fans: Combine axial and centrifugal benefits, strong airflow for modest duct lengths with quieter operation.
• Inline Fans: Mounted remotely (e.g., in the loft) for near‑silent extraction. Perfect for those wanting a silent bathroom extractor fan 100mm experience.

Choosing the Right Extractor Fan

Selecting your fan is all about matching airflow, safety, and features to your needs.

Install According to Bathroom Zones

Bathrooms are divided into zones based on water and electrical safety:

• Zone 1: Inside the bath or shower, requires IP45 or higher. Zone 1 bathroom fan may need extra protection like SELV (Safety Extra Low Voltage).
• Zone 2: The area immediately around the bath (up to 60 cm from water). IP44 is the minimum here.
• Outside Zones: Less risk, more flexibility, standard fans may be appropriate.

For a visual guide to zones, see Electrical Safety First. Double-check your bathroom fan IP rating guide to ensure safety and compliance.

Air Exchange Rate

For most bathrooms, UK Building Regulations require at least 15 litres per second (L/s) of extraction. Bigger bathrooms or those used frequently may need more, so size up if in doubt.

Heat Recovery

Want to save energy and keep things cozy? Consider models with heat recovery, which recycle warmth from outgoing air, a smart upgrade for colder climates.

Size Matters

Match the fan size to your room:

•  4-inch fans: Perfect for WCs and small en-suites.
•  6-inch fans: Best for medium bathrooms and family use.
•  9–12-inch fans: For large spaces or commercial settings.

Extra Features

Today’s fans offer smart conveniences:

• Run-on Timer: Keeps the fan going after you leave, ensuring complete moisture extraction.
• Humility/Trickle Ventilation: Automatically adjusts airflow for consistent comfort.
• Silent Operation: Look for low dB(A) ratings, as quiet as 14 dB for undisturbed nights.
• App Control: Some fans let you adjust settings from your phone, an easy upgrade for tech-savvy homes.

Source - Charlie DIYte (CharlieDIYte)

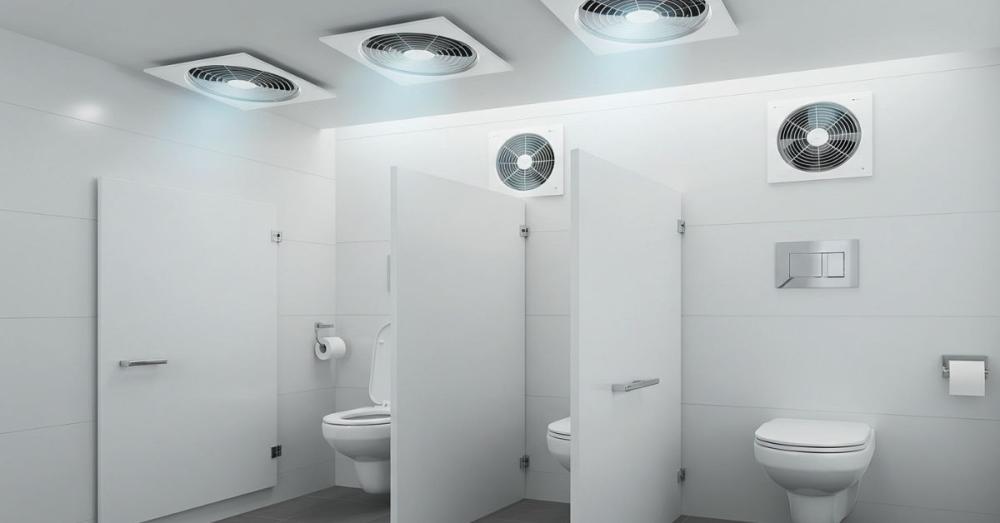

Installation Essentials and Best Practice

Proper installation ensures your fan works efficiently and lasts longer.

•  Positioning: Place the fan as close to showers or baths as possible for best results.
•  Ducting: Keep duct runs short and straight. Avoid sharp bends that slow airflow.
•  Backdraft Shutters: Prevent cold air and odours creeping back in.
•  Maintenance: Regularly clean grilles and check for dust build-up, a clean fan is a quiet, efficient fan.
•  Controls: Wire to the light switch, use a pull cord, or go automatic with humidity or PIR sensors, so extraction happens whenever needed.

Top Picks for Toilet Extractor Fans

At Meteor Electrical, we offer a range of high-quality toilet extractor fans designed to keep your bathroom fresh and dry. Here are our top picks:

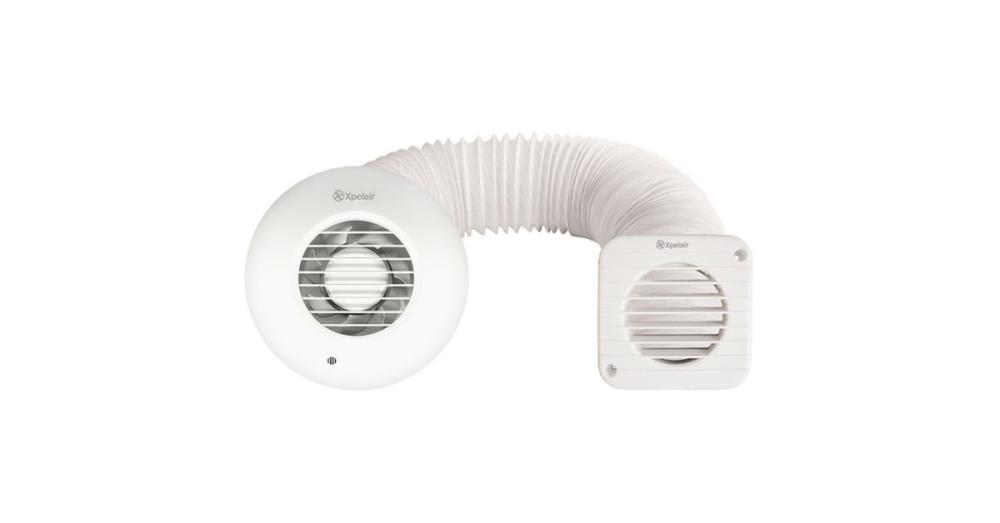

1. Xpelair Simply Silent Shower Extractor Fan

Features: This model boasts Ghost Air Movement technology, which ensures ultra-quiet operation, making it perfect for those who prefer a serene bathroom environment. It comes with an integral timer, allowing you to set the fan to run for a specific duration, ensuring all moisture is effectively extracted. The fan also includes flexible ducting and a sleek white external grille, making installation straightforward and aesthetically pleasing.

Ideal For: Small to medium-sized bathrooms. Its compact design and powerful performance make it a versatile choice for most household bathrooms.

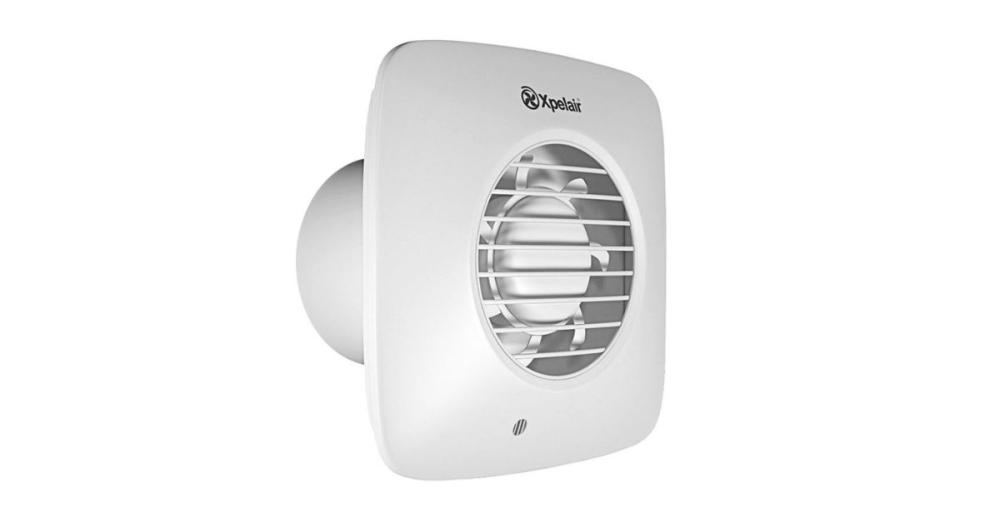

2. Xpelair Simply Silent Extractor Fan

Features: This fan is equipped with an over-run timer, allowing you to customise the operation time after the fan is turned off. It is compatible with sensor devices, providing hands-free operation for added convenience. The fan operates silently, thanks to the Ghost Air Movement technology, and offers two-speed settings to adjust the airflow according to your needs.

Ideal For: This versatile fan is suitable for almost any bathroom, with airflow rates of 15L/s or 21L/s. It is perfect for maintaining optimal air quality in various bathroom sizes.

3. Airflow iCon 30 Extractor Fan

Features: The Airflow iCon 30 is designed for powerful ventilation with a high extraction rate of 32L/s. Despite its robust performance, it operates quietly, ensuring a peaceful bathroom experience. The fan is easy to install and comes with a modern, unobtrusive design that blends seamlessly into any bathroom decor.

Ideal For: Larger shower rooms and bathrooms that require efficient moisture and odour extraction. Its high extraction rate makes it particularly effective in spaces that experience heavy use or have high humidity levels.

By choosing one of these top-performing extractor fans from Meteor Electrical, you can ensure your bathroom stays fresh, dry, and comfortable all year round.

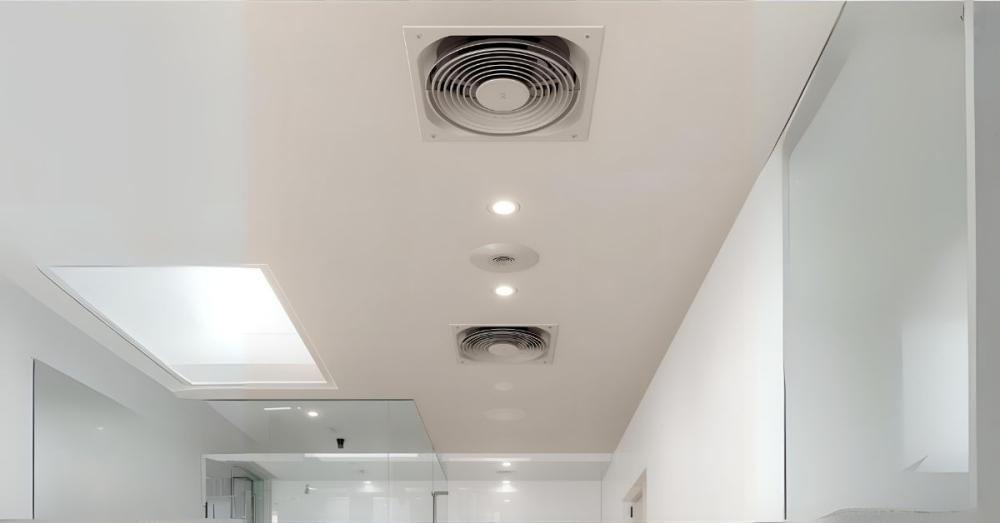

The Importance of Extractor Fans in Toilets

Bathrooms generate a lot of moisture, and without good ventilation, mould and mildew can thrive, posing risks for allergies and asthma. Effective extraction keeps the air fresh, prevents damp, and protects your home’s structure. For health insights, see Healthline.

Quick Sizing and Selection Tips

• Room Size and Usage: Bigger, busier rooms need bigger fans or higher extraction rates.
• Duct Length: For long or complex routes, choose centrifugal or inline extractor fan for long duct runs.
• Location and Noise: For bedrooms or flats, a silent bathroom extractor fan 100mm installed in the loft is ideal.
• Controls: A toilet extractor fan with timer or humidity sensor automates moisture control.
• Safety First: Match your bathroom fan IP rating guide to the bathroom zone and always get installations checked by a qualified electrician.

Source - ElectricWorldTV

Conclusion

A well‑chosen, properly installed toilet extractor fan will keep your bathroom fresh, dry, and mould‑free, protecting both your health and your home’s value. Whether you need a simple axial fan, a powerful centrifugal unit, or a silent bathroom extractor fan 100mm, Meteor Electrical has the performance, features, and expert guidance you need for confident installation and lasting results.

Ready to upgrade?

Shop the full range of high-quality extractor fans and accessories at Meteor Electrical, your trusted partner for easy, effective bathroom ventilation.

Visit https://www.meteorelectrical.com/ and start breathing easier today.

Frequently Asked Questions (FAQs)

1. What’s the best type of extractor fan for my bathroom?

Axial for short, straight ducts; centrifugal or inline extractor fan for long duct runs; inline for near-silent operation.

2. How noisy are extractor fans?

Modern axial and inline fans can be very quiet, look for models with low dB(A) ratings if noise is a concern.

3. Do I need a special fan for the shower area?

Yes, Zone 1 bathroom fan must have IP45 or higher and may require SELV (Low Voltage) for safety.

4. How much extraction do I need?

At least 15 L/s for most bathrooms, more for larger or heavily used spaces.

5. Can I install a fan myself?

Basic models are DIY-friendly, but always consult a qualified electrician for complex jobs or when in doubt.
